TOYOTA TACOMA | 2.5 FACTORY RACE SERIES

SKU: 883-06-208

$3,139.95

TOYOTA TACOMA | 2.5 FACTORY RACE SERIES

Low Stock

Find a Retailer

View Cart Check Out

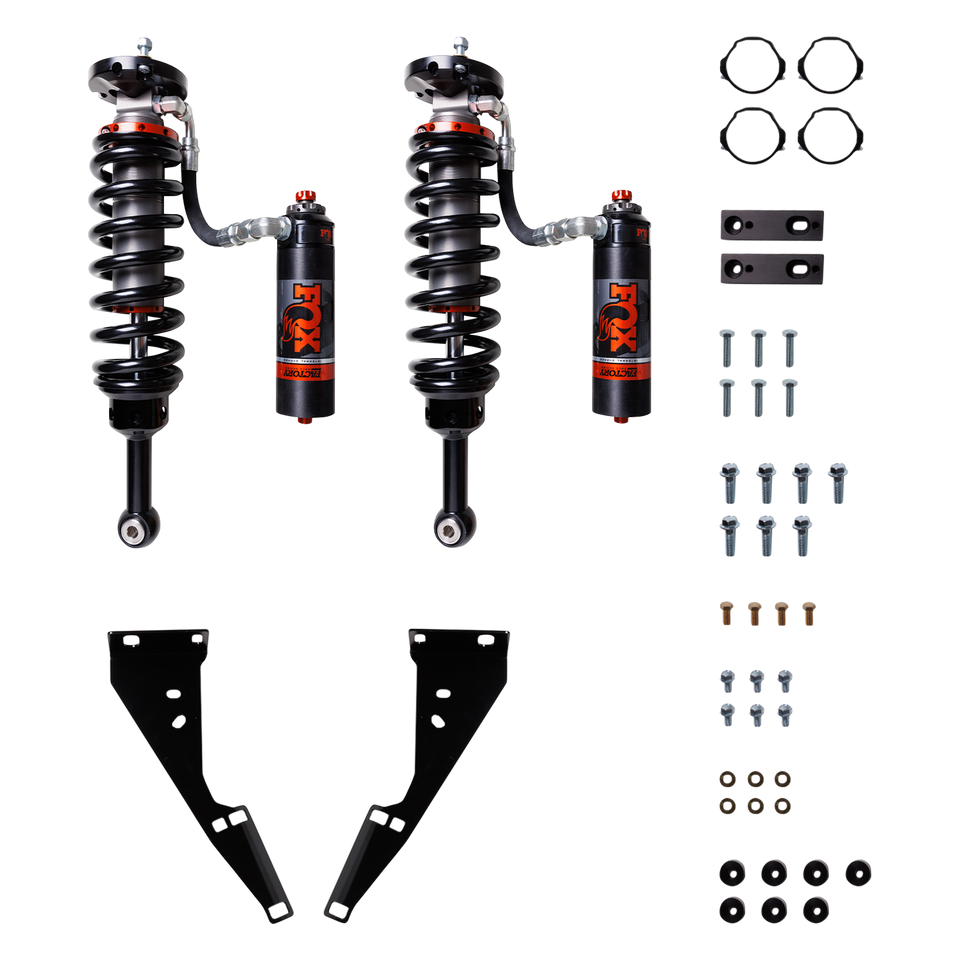

FOX Factory Race Series 2.5 Internal Bypass shocks for the Toyota Tacoma deliver velocity and position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

Type III anodization prevents corrosion and wear of the 2.5-inch diameter aluminum bodies. Dial in your Tacoma for load, environment, and driving style with the DSC adjuster. External reservoirs increase oil capacity and house an internal floating piston (IFP) to separate the shock oil and nitrogen charge, maintaining consistent damping and keeping shock temperatures cool.

Experience the support and confidence of FOX Internal Bypass shocks you need while driving high-speed through rugged terrain.

CHECK FITMENT: ENTER YOUR VEHICLE

PART NUMBER 883-06-208
FEATURES

2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body
Patented, internal bypass design
Application-specific springs
7/8" hard chromed steel shafts
Vehicle-specific tuning maximizes performance
Redundant sealing pack system: main seal, wiper seal, scraper seal

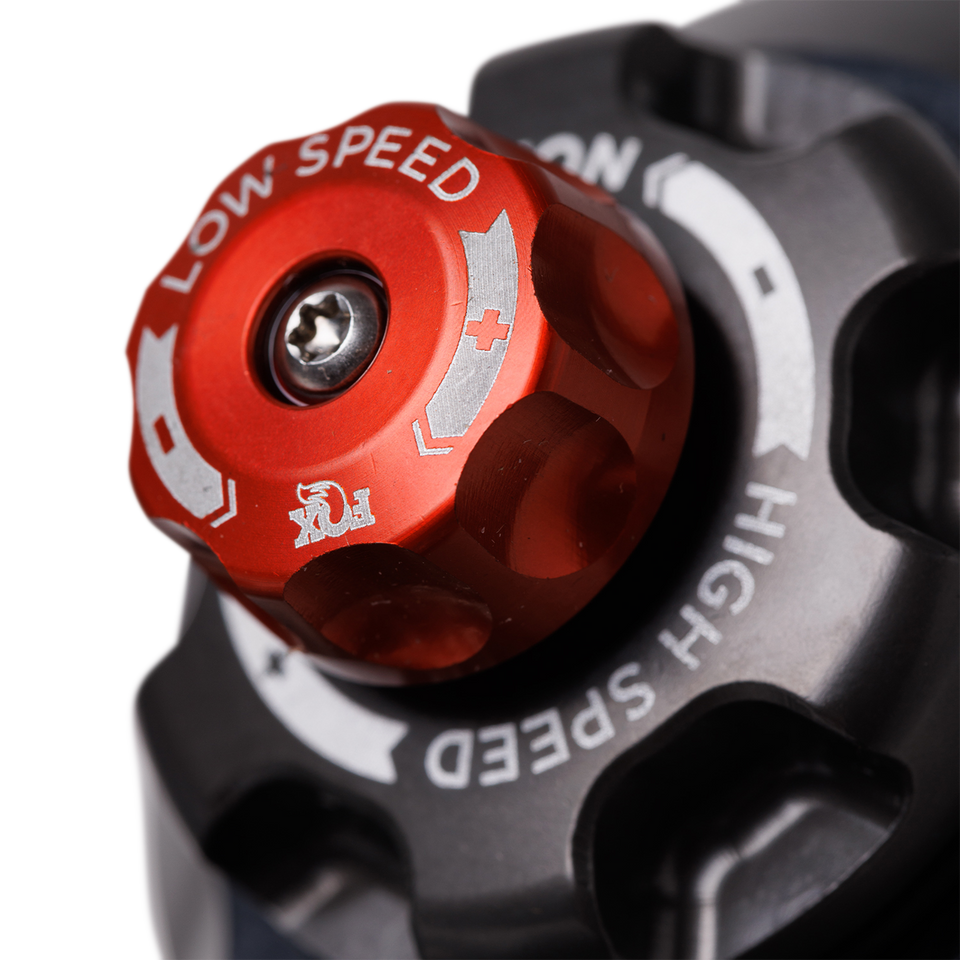

External reservoir, with DSC adjuster
SERIES Factory
TRAVEL 5.23
BODY 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
BODY PLATING Hard-anodized for a durable finish
PISTON Race-developed high-flow piston design
VALVING Application specific valving to maximize performance
EXTENDED LENGTH 21.87
COMPRESSED LENGTH 16.64
TOP MOUNT OEM
BOTTOM MOUNT Eyelet
FITMENT NOTES Fits 6 lug version only | Requires Upper Control Arm

883-06-208 Also Fits

Year Make Model Sub Model Drive Type Fuel Type Doors Fitment Map Details Position Lift Height
2008 Toyota Tacoma Base 4WD All All Requires Upper Control Arm Front 2"-3"
2011 Toyota Tacoma Base 4WD All All Requires Upper Control Arm Front 2"-3"
2019 Toyota Tacoma TRD Off-Road RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2017 Toyota Tacoma Sport RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2022 Toyota Tacoma All 4WD All All Requires Upper Control Arm Front 1"-2"
2020 Toyota Tacoma SR RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2023 Toyota Tacoma SR5 RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2022 Toyota Tacoma Sport RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2010 Toyota Tacoma Base 4WD All All Requires Upper Control Arm Front 2"-3"
2017 Toyota Tacoma TRD Sport RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2019 Toyota Tacoma All 4WD All All Requires Upper Control Arm Front 1"-2"
2021 Toyota Tacoma Limited RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2021 Toyota Tacoma SR RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2013 Toyota Tacoma Base 4WD All All Requires Upper Control Arm Front 2"-3"
2015 Toyota Tacoma TRD Sport RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 2"-3"
2018 Toyota Tacoma SR5 RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2008 Toyota Tacoma All RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 2"-3"
2015 Toyota Tacoma Base RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 2"-3"
2017 Toyota Tacoma Limited RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2014 Toyota Tacoma TRD Sport 4WD All All Requires Upper Control Arm Front 2"-3"
2023 Toyota Tacoma Limited RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2023 Toyota Tacoma Sport RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2013 Toyota Tacoma All RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 2"-3"
2009 Toyota Tacoma Base 4WD All All Requires Upper Control Arm Front 2"-3"
2017 Toyota Tacoma TRD Off-Road RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2005 Toyota Tacoma All RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 2"-3"
2012 Toyota Tacoma Base 4WD All All Requires Upper Control Arm Front 2"-3"
2014 Toyota Tacoma Base 4WD All All Requires Upper Control Arm Front 2"-3"
2020 Toyota Tacoma TRD Sport RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2023 Toyota Tacoma TRD Off-Road RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2021 Toyota Tacoma SR5 RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2017 Toyota Tacoma SR5 RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2015 Toyota Tacoma TRD Pro All All All Requires Upper Control Arm Front 2"-3"
2023 Toyota Tacoma All 4WD All All Requires Upper Control Arm Front 1"-2"
2013 Toyota Tacoma TRD Sport 4WD All All Requires Upper Control Arm Front 2"-3"
2021 Toyota Tacoma Sport RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2012 Toyota Tacoma All RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 2"-3"
2018 Toyota Tacoma SR RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2010 Toyota Tacoma All RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 2"-3"
2006 Toyota Tacoma All RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 2"-3"
2018 Toyota Tacoma Sport RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2019 Toyota Tacoma SR5 RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2006 Toyota Tacoma Base 4WD All All Requires Upper Control Arm Front 2"-3"
2023 Toyota Tacoma SR RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2016 Toyota Tacoma SR5 RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2007 Toyota Tacoma All RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 2"-3"
2021 Toyota Tacoma TRD Sport RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2016 Toyota Tacoma SR RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2015 Toyota Tacoma Pre Runner All All All Fits 6 lug version only , Requires Upper Control Arm Front 2"-3"
2016 Toyota Tacoma TRD Sport RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2010 Toyota Tacoma TRD Sport 4WD All All Requires Upper Control Arm Front 2"-3"
2019 Toyota Tacoma SR RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2021 Toyota Tacoma All 4WD All All Requires Upper Control Arm Front 1"-2"
2019 Toyota Tacoma Sport RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2020 Toyota Tacoma SR5 RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2011 Toyota Tacoma TRD Sport 4WD All All Requires Upper Control Arm Front 2"-3"
2018 Toyota Tacoma TRD Sport RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2011 Toyota Tacoma All RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 2"-3"
2020 Toyota Tacoma Sport RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2019 Toyota Tacoma Limited RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2022 Toyota Tacoma SR5 RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2015 Toyota Tacoma Base 4WD All All Requires Upper Control Arm Front 2"-3"
2017 Toyota Tacoma All 4WD All All Requires Upper Control Arm Front 1"-2"
2005 Toyota Tacoma Base 4WD All All Requires Upper Control Arm Front 2"-3"
2022 Toyota Tacoma Limited RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2022 Toyota Tacoma SR RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2018 Toyota Tacoma TRD Off-Road RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2021 Toyota Tacoma Trail RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2016 Toyota Tacoma TRD Off-Road RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2017 Toyota Tacoma SR RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2017 Toyota Tacoma TRD Pro RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2023 Toyota Tacoma TRD Sport RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2007 Toyota Tacoma Base 4WD All All Requires Upper Control Arm Front 2"-3"
2009 Toyota Tacoma All RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 2"-3"
2016 Toyota Tacoma All 4WD All All Requires Upper Control Arm Front 1"-2"
2022 Toyota Tacoma TRD Off-Road RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2014 Toyota Tacoma All RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 2"-3"
2020 Toyota Tacoma Limited RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2021 Toyota Tacoma TRD Off-Road RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2012 Toyota Tacoma TRD Sport 4WD All All Requires Upper Control Arm Front 2"-3"
2019 Toyota Tacoma TRD Sport RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2018 Toyota Tacoma Limited RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2020 Toyota Tacoma All 4WD All All Requires Upper Control Arm Front 1"-2"
2018 Toyota Tacoma All 4WD All All Requires Upper Control Arm Front 1"-2"
2015 Toyota Tacoma TRD Sport 4WD All All Requires Upper Control Arm Front 2"-3"
2020 Toyota Tacoma TRD Off-Road RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2022 Toyota Tacoma TRD Sport RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
2016 Toyota Tacoma Limited RWD All All Fits 6 lug version only , Requires Upper Control Arm Front 1"-2"
