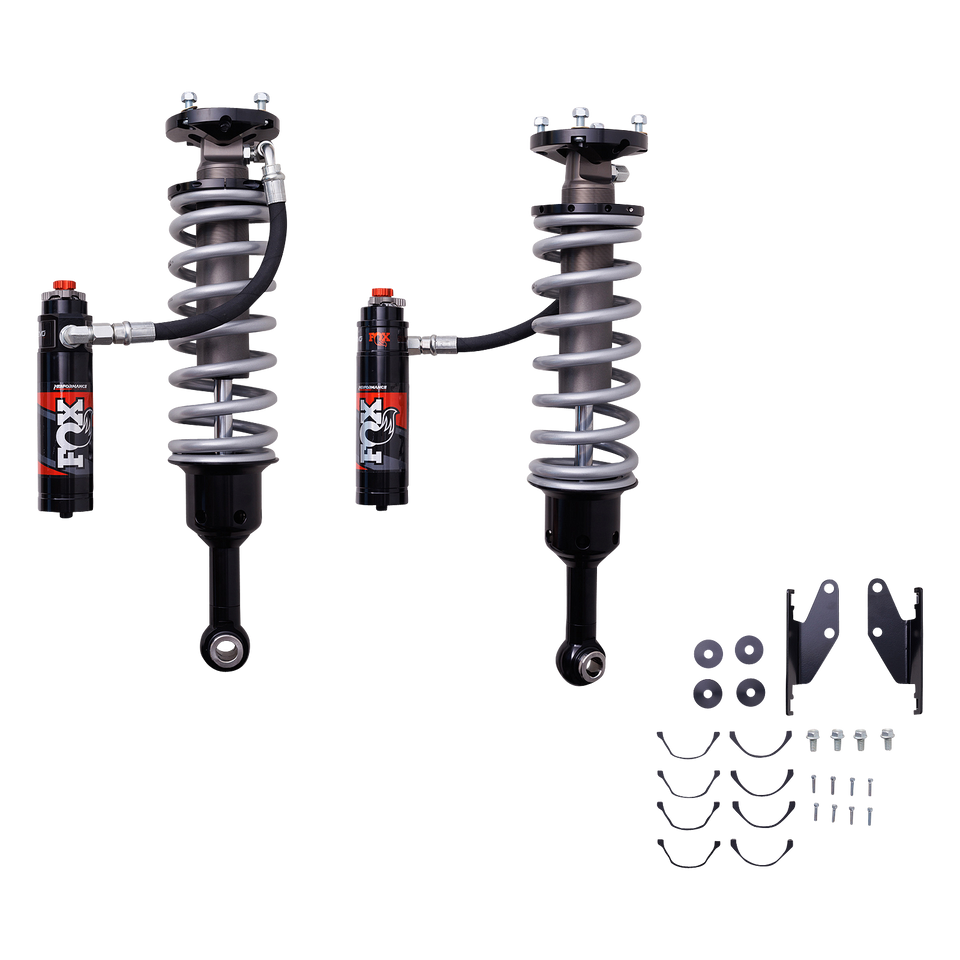

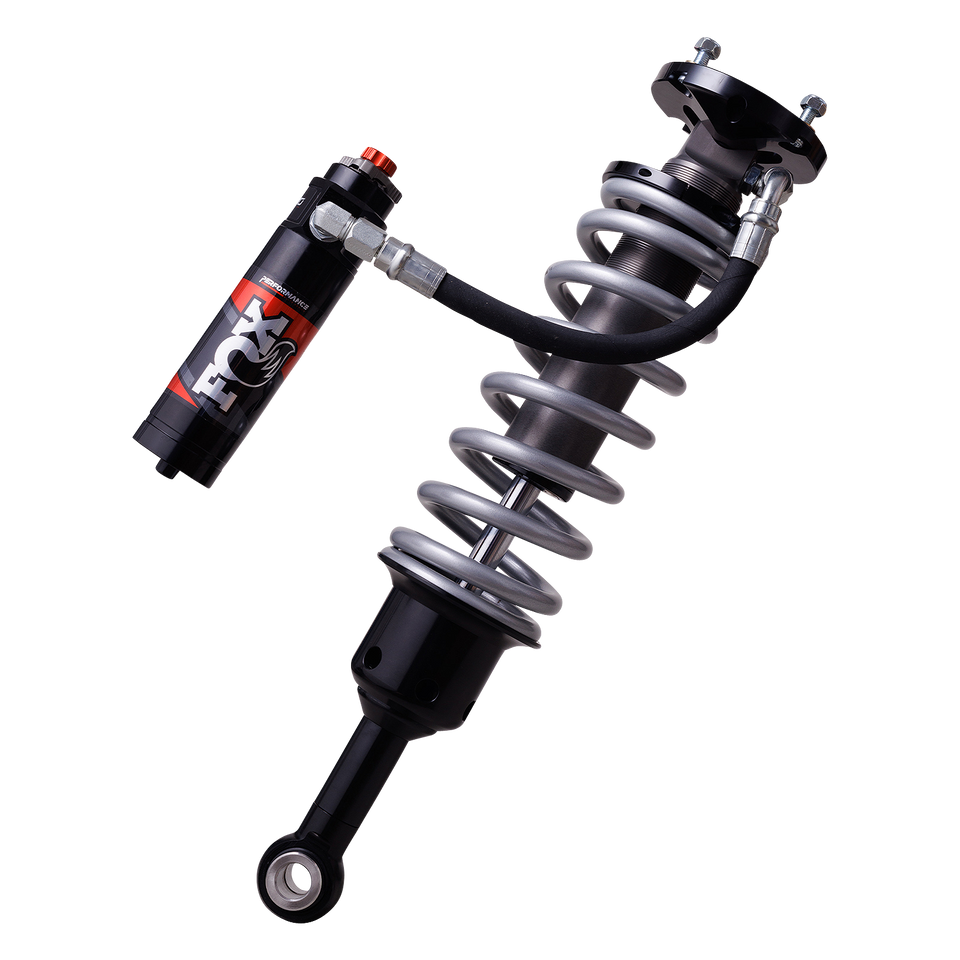

TOYOTA LC300 & LEXUS LX600 | 2.5 PERFORMANCE ELITE SERIES
SKU: 883-06-230
| PART NUMBER | 883-06-230 |
| FEATURES |

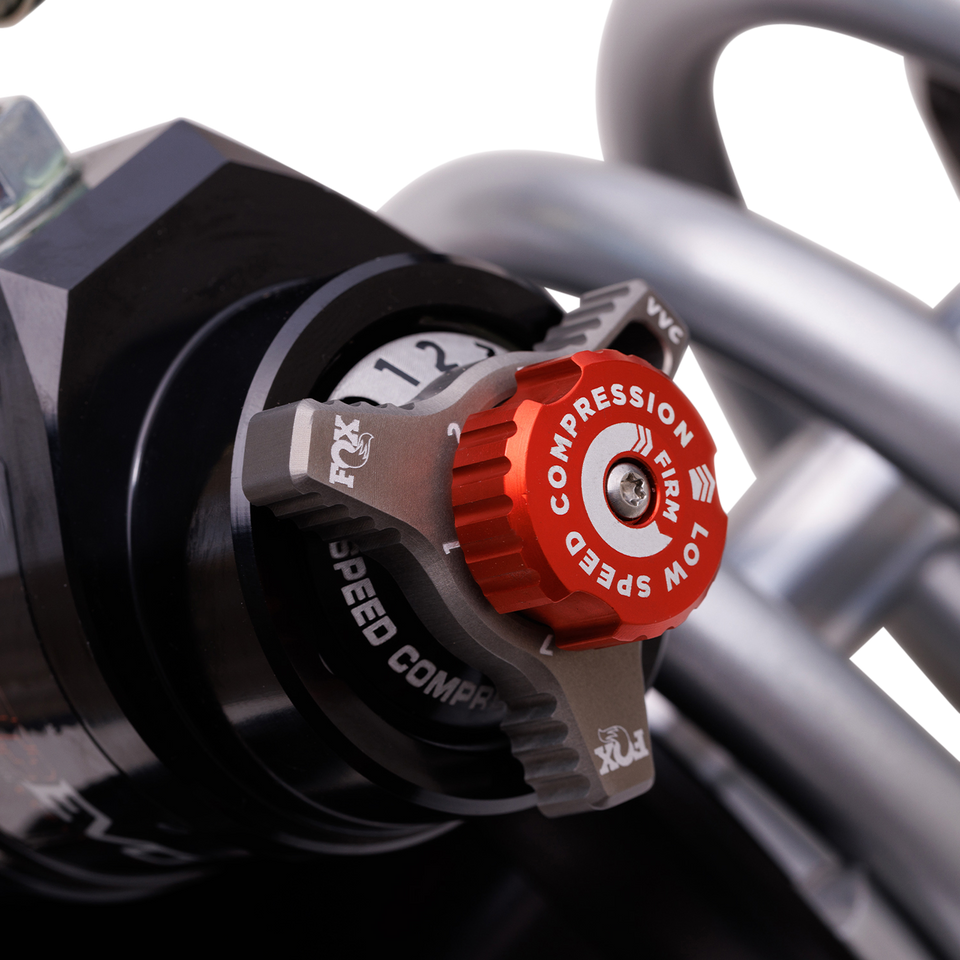

2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body 7/8" hard chromed steel shafts Vehicle-specific tuning maximizes performance Redundant sealing pack system: main seal, wiper seal, scraper seal External reservoir, with DSC EVO adjuster |
| SERIES | Performance Elite |
| TRAVEL | 6.67 |
| BODY | 2.5" Impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
| BODY PLATING | Hard-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 7/8" hard chrome plated steel shafts |
| PISTON | 6061-T6 hard-anodized, high flow aluminum piston |
| EXTENDED LENGTH | 24.98 |
| COMPRESSED LENGTH | 18.31 |
| TOP MOUNT | OEM |
| BOTTOM MOUNT | Eyelet |
| FITMENT NOTES | Does not fit trim packages with KDSS |
| PART NUMBER | 883-06-230 |
| FEATURES |
2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body 7/8" hard chromed steel shafts Vehicle-specific tuning maximizes performance Redundant sealing pack system: main seal, wiper seal, scraper seal External reservoir, with DSC EVO adjuster |
| SERIES | Performance Elite |
| TRAVEL | 6.67 |
| BODY | 2.5" Impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
| BODY PLATING | Hard-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 7/8" hard chrome plated steel shafts |
| PISTON | 6061-T6 hard-anodized, high flow aluminum piston |
| EXTENDED LENGTH | 24.98 |
| COMPRESSED LENGTH | 18.31 |
| TOP MOUNT | OEM |
| BOTTOM MOUNT | Eyelet |
| FITMENT NOTES | Does not fit trim packages with KDSS |
883-06-230 Also Fits
| Year | Make | Model | Drive Type | Position | Lift Height | Comments | Price |
|---|---|---|---|---|---|---|---|
| 2022 | Lexus | LX600 | All | Front | 0-2 | 0-50mm lift | $2,729.95 |
| 2023 | Lexus | LX600 | All | Front | 0-2 | 0-50mm lift | $2,729.95 |
| 2024 | Lexus | LX600 | All | Front | 0-2 | 0-50mm lift | $2,729.95 |
| 2025 | Lexus | LX600 | All | Front | 0-2 | 0-50mm lift | $2,729.95 |
MANUALS & DOCUMENTS
-
01
OWNER'S MANUAL
Download ManualFull overview manual including tuning, installation, and general owner's manual.
-
03
SERVICE
Get ServiceKeep your suspension performing at factory levels. Get service or upgrade your suspension.
