TOYOTA HILUX | 2.5 PERFORMANCE SERIES

SKU: 987-24-071

$346.95

TOYOTA HILUX | 2.5 PERFORMANCE SERIES

Low Stock

Find a Retailer

View Cart Check Out
LIMITED LIFETIME WARRANTY

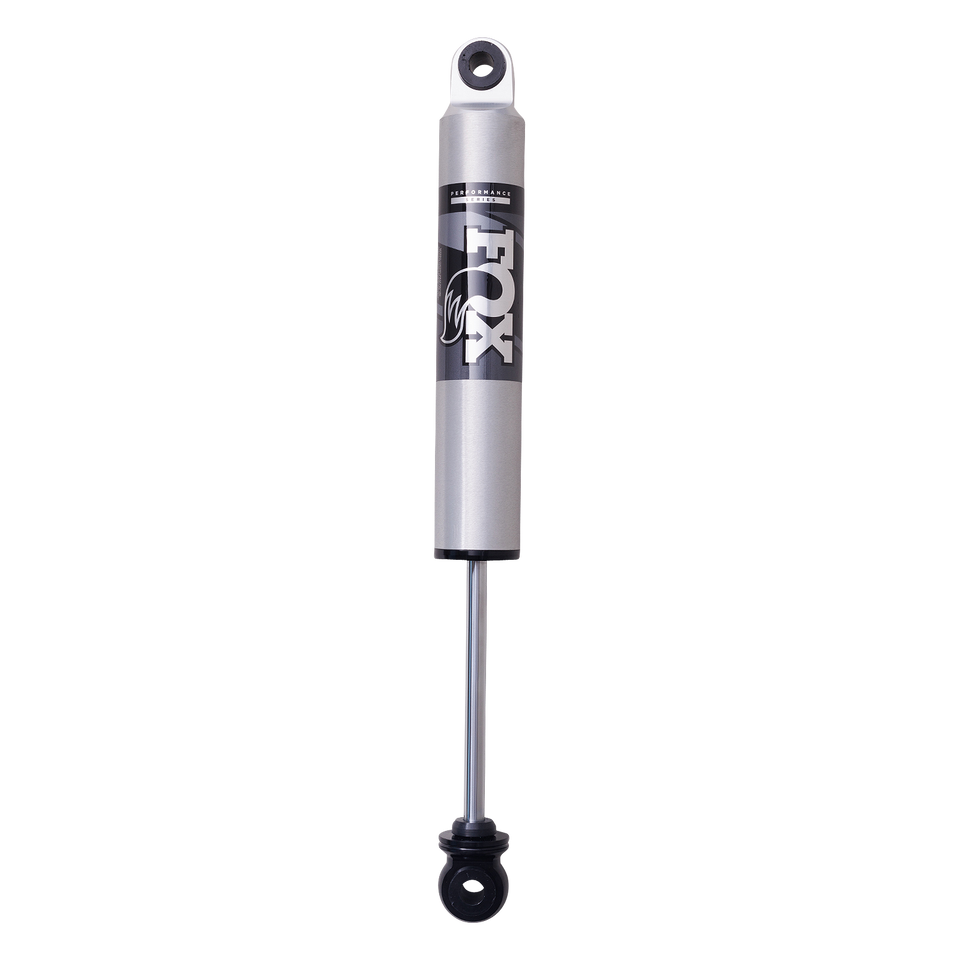

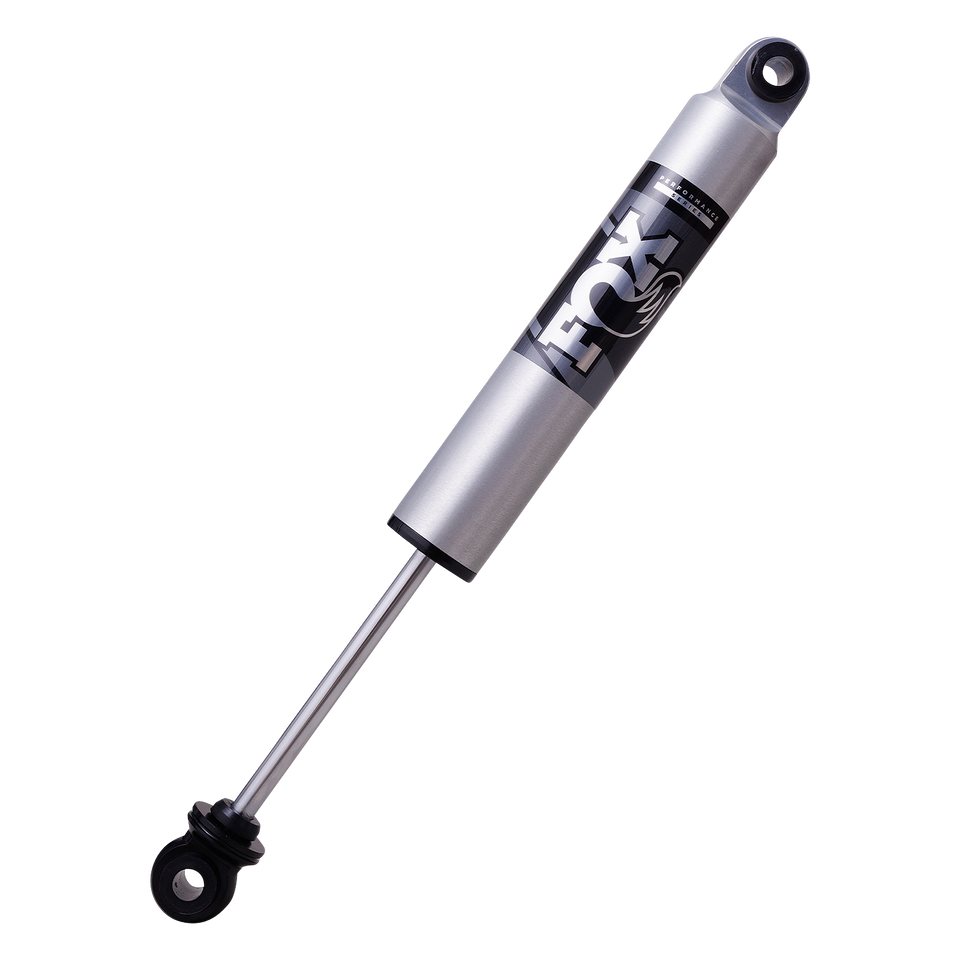

FOX Performance Series 2.5 shocks for the Toyota Hilux are a bolt-on solution with vehiclespecific valving and larger pistons to improve on and off-road performance. Level your vehicle without straining ball joints or linkages to maintain OEM reliability and vehicle behavior.

Monotube shocks utilize type II anodized aluminum bodies, efficiently dissipating heat and preventing corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.

Bolt-on Performance Series 2.5 shocks ride in comfort and increase damping capacity.

CHECK FITMENT: ENTER YOUR VEHICLE

PART NUMBER 987-24-071
FEATURES

2.5” Impact extruded 6061-T6 aluminum shock body

Type II clear-anodized body plating

High-flow velocity-sensitive damping 5/8” hard chrome shaft

Internal floating piston (IFP)
SERIES Performance
TRAVEL 8.45
BODY 2.5” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
BODY PLATING Clear-anodized for a durable finish
COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT 5/8" hard chrome plated heat-treated alloy steel
PISTON Race-developed high-flow piston design
EXTENDED LENGTH 24.99
COMPRESSED LENGTH 16.54
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet

987-24-071 Also Fits

Year Make Model Sub Model Drive Type Fuel Type Doors Type Position Lift Height Price
2024 Toyota Hilux All All All All 7556 Shock Absorber EA Rear 30 1"-2" $346.95
2020 Toyota Hilux All All All All 7556 Shock Absorber EA Rear 30 1"-2" $346.95
2021 Toyota Hilux All All All All 7556 Shock Absorber EA Rear 30 1"-2" $346.95
2023 Toyota Hilux All All All All 7556 Shock Absorber EA Rear 30 1"-2" $346.95
2022 Toyota Hilux All All All All 7556 Shock Absorber EA Rear 30 1"-2" $346.95
2016 Toyota Hilux All All All All 7556 Shock Absorber EA Rear 30 1"-2" $346.95
2017 Toyota Hilux All All All All 7556 Shock Absorber EA Rear 30 1"-2" $346.95
2019 Toyota Hilux All All All All 7556 Shock Absorber EA Rear 30 1"-2" $346.95
2018 Toyota Hilux All All All All 7556 Shock Absorber EA Rear 30 1"-2" $346.95
2016 Toyota Hilux All 4WD All All Rear 1"-2" (25-50mm) All $346.95
2017 Toyota Hilux All 4WD All All Rear 1"-2" (25-50mm) All $346.95
2018 Toyota Hilux All 4WD All All Rear 1"-2" (25-50mm) All $346.95
2019 Toyota Hilux All 4WD All All Rear 1"-2" (25-50mm) All $346.95
2020 Toyota Hilux All 4WD All All Rear 1"-2" (25-50mm) All $346.95
2021 Toyota Hilux All 4WD All All Rear 1"-2" (25-50mm) All $346.95
2022 Toyota Hilux All 4WD All All Rear 1"-2" (25-50mm) All $346.95
2023 Toyota Hilux All 4WD All All Rear 1"-2" (25-50mm) All $346.95
2024 Toyota Hilux All 4WD All All Rear 1"-2" (25-50mm) All $346.95
2025 Toyota Hilux All 4WD All All Rear 1"-2" (25-50mm) All $346.95
2026 Toyota Hilux All 4WD All All Rear 1"-2" (25-50mm) All $346.95
