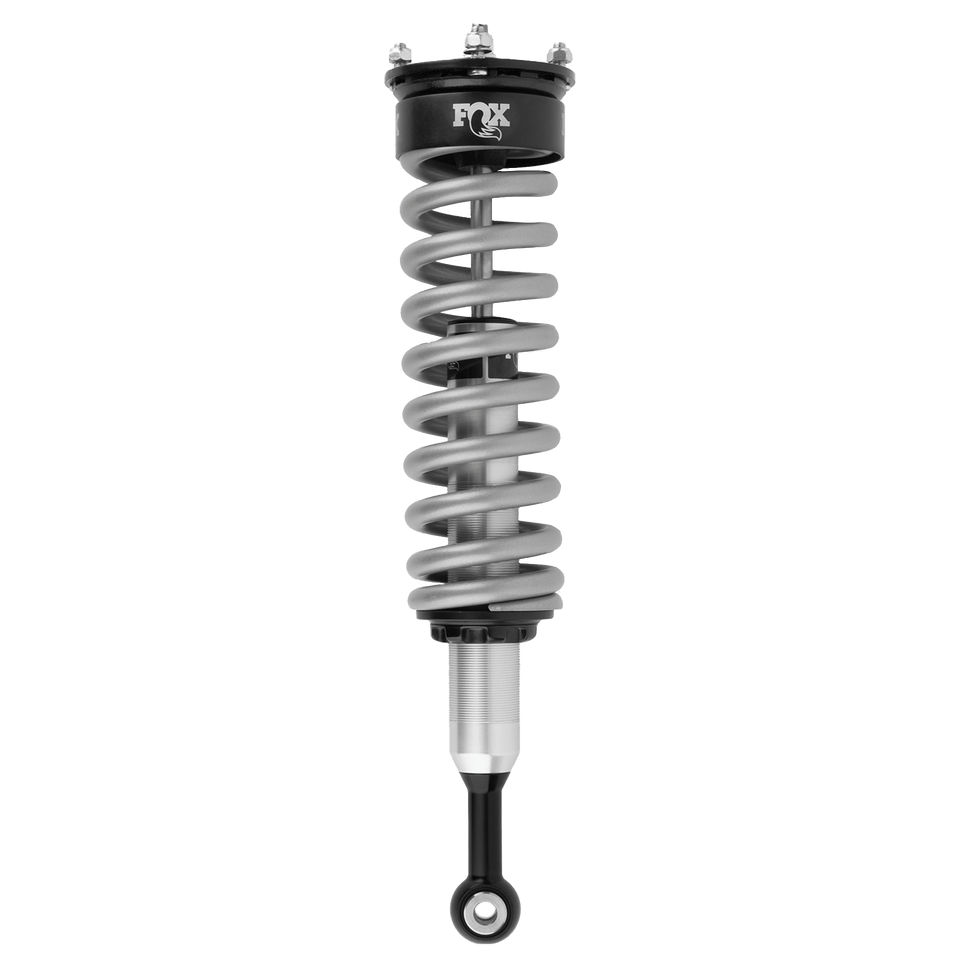

TOYOTA & LEXUS | 2.5 PERFORMANCE SERIES | HD TUNE

SKU: 987-02-016

$789.95

TOYOTA & LEXUS | 2.5 PERFORMANCE SERIES | HD TUNE

Low Stock

Find a Retailer

View Cart Check Out
LIMITED LIFETIME WARRANTY

FOX Performance Series 2.5 shocks for the LC250, GX550, and 4Runner are a bolt-on solution with vehicle-specific valving and larger pistons to improve on and off-road performance. Level your vehicle without straining ball joints or linkages to maintain OEM reliability and vehicle behavior.

Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.

Bolt-on Performance Series 2.5 shocks ride in comfort and increase damping capacity.

CHECK FITMENT: ENTER YOUR VEHICLE

PART NUMBER 987-02-016
FEATURES

2.5” Impact extruded 6061-T6 aluminum shock body
Type II clear-anodized body plating
High-flow velocity-sensitive damping
5/8” hard chrome shaft
Internal floating piston (IFP)

Hydraulic Top Out (HTO)
SERIES Performance
TRAVEL 6.45
EXTENDED LENGTH 24.45
COMPRESSED LENGTH 18
TOP MOUNT OEM
BOTTOM MOUNT Eyelet
