TOYOTA & LEXUS | 2.5 PERFORMANCE ELITE SERIES | HD TUNE
SKU: 883-06-248

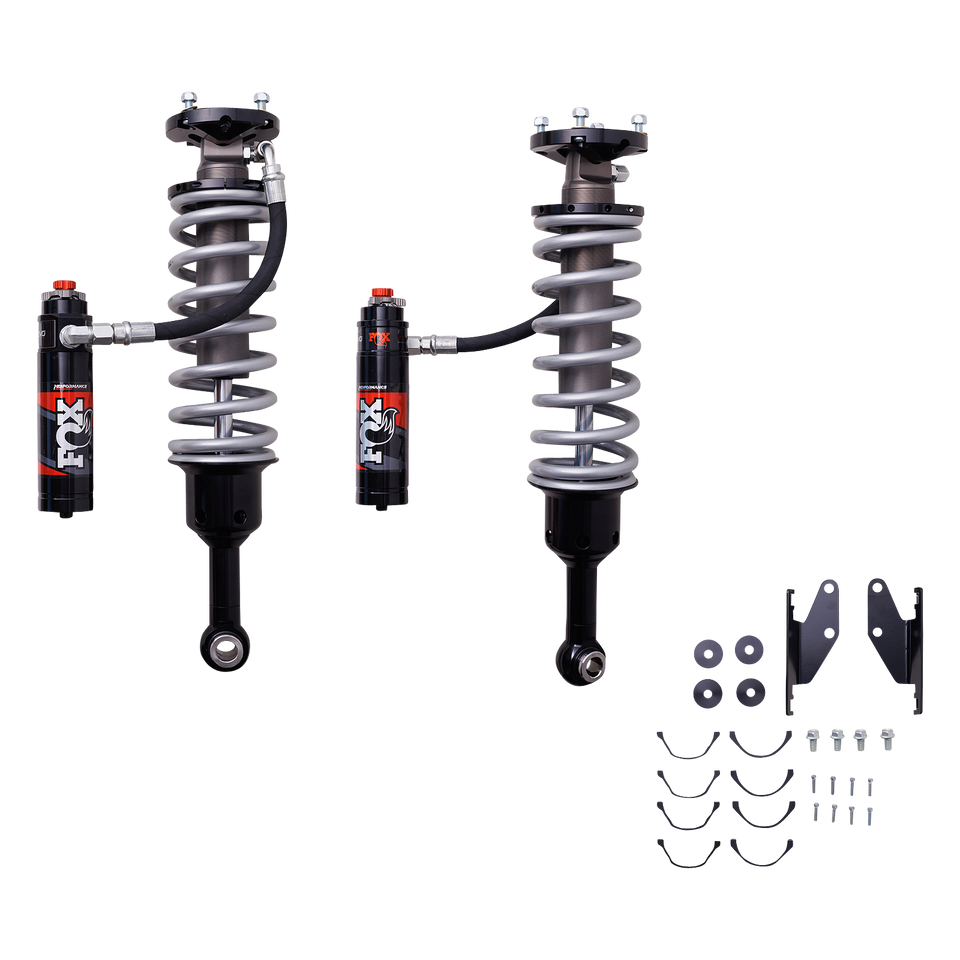

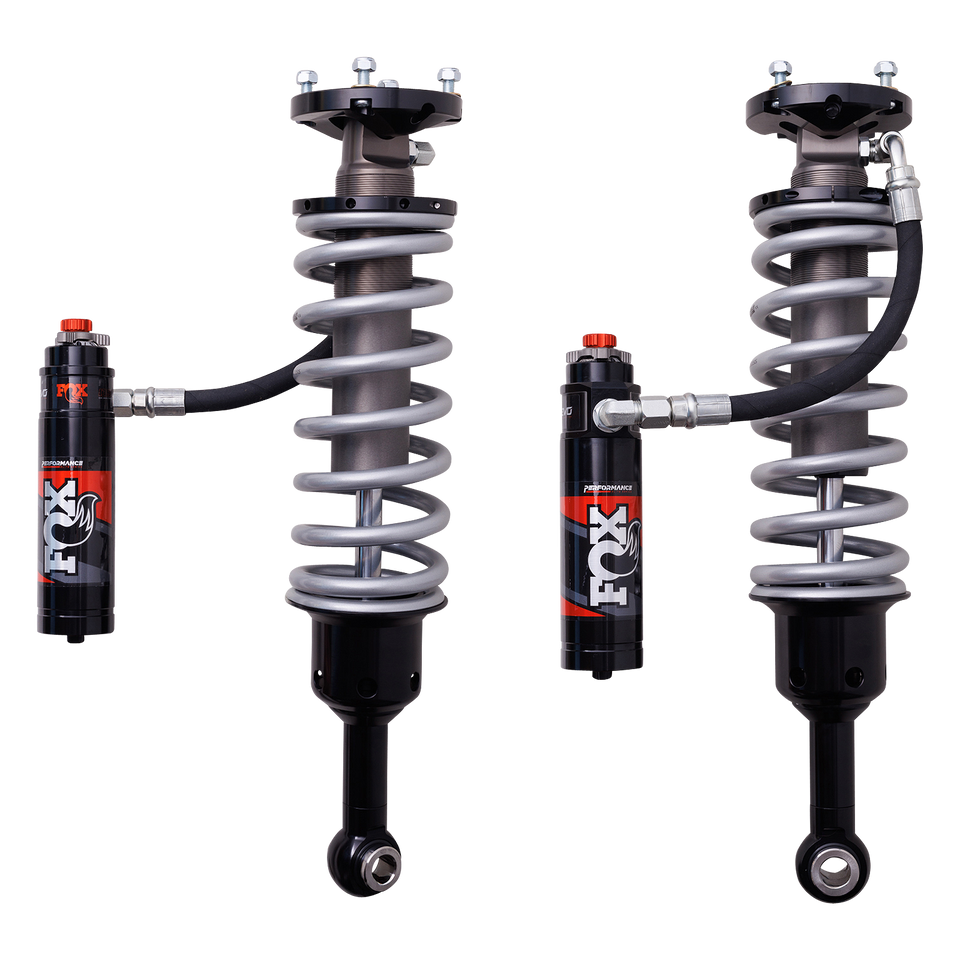

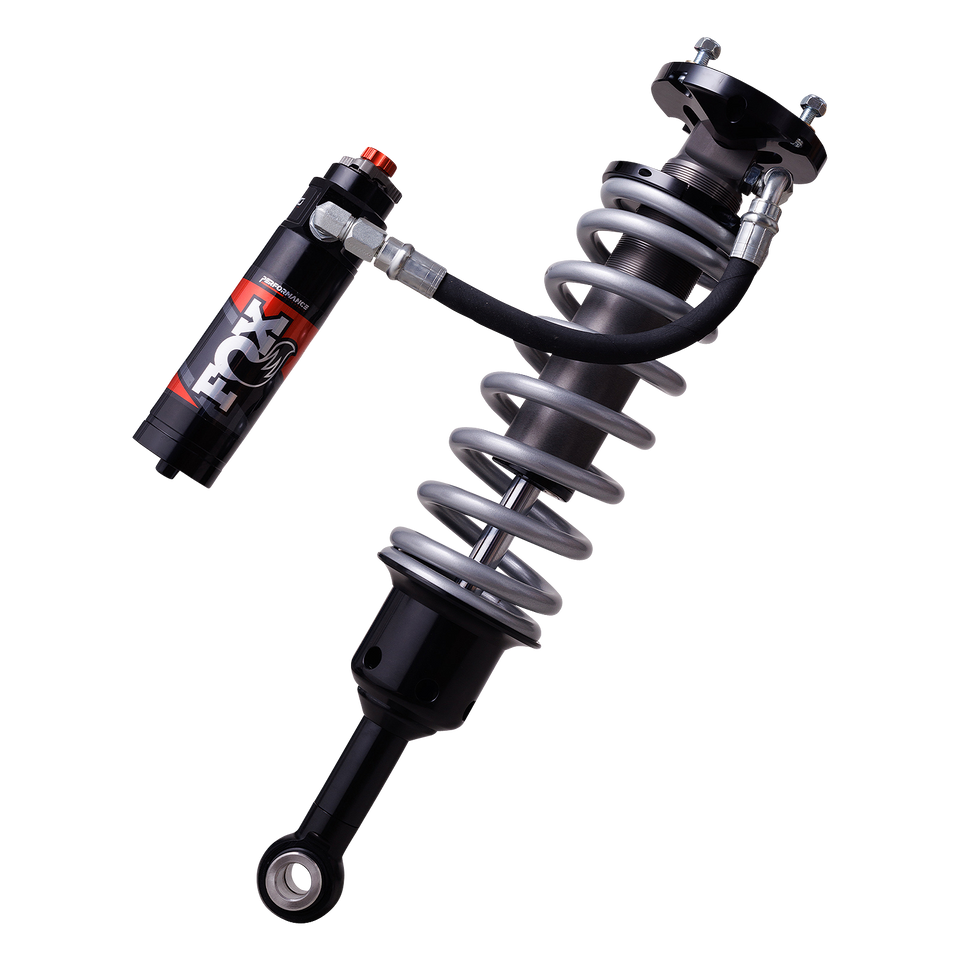

FOX Performance Elite Series 2.5 shocks improve the LC250, GX550, and 4Runner chassis by eliminating the vehicle’s forward rake, providing a level ride height, and increasing the suspension articulation.
Type III anodization prevents corrosion and wear of the 2.5-inch aluminum bodies. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock.

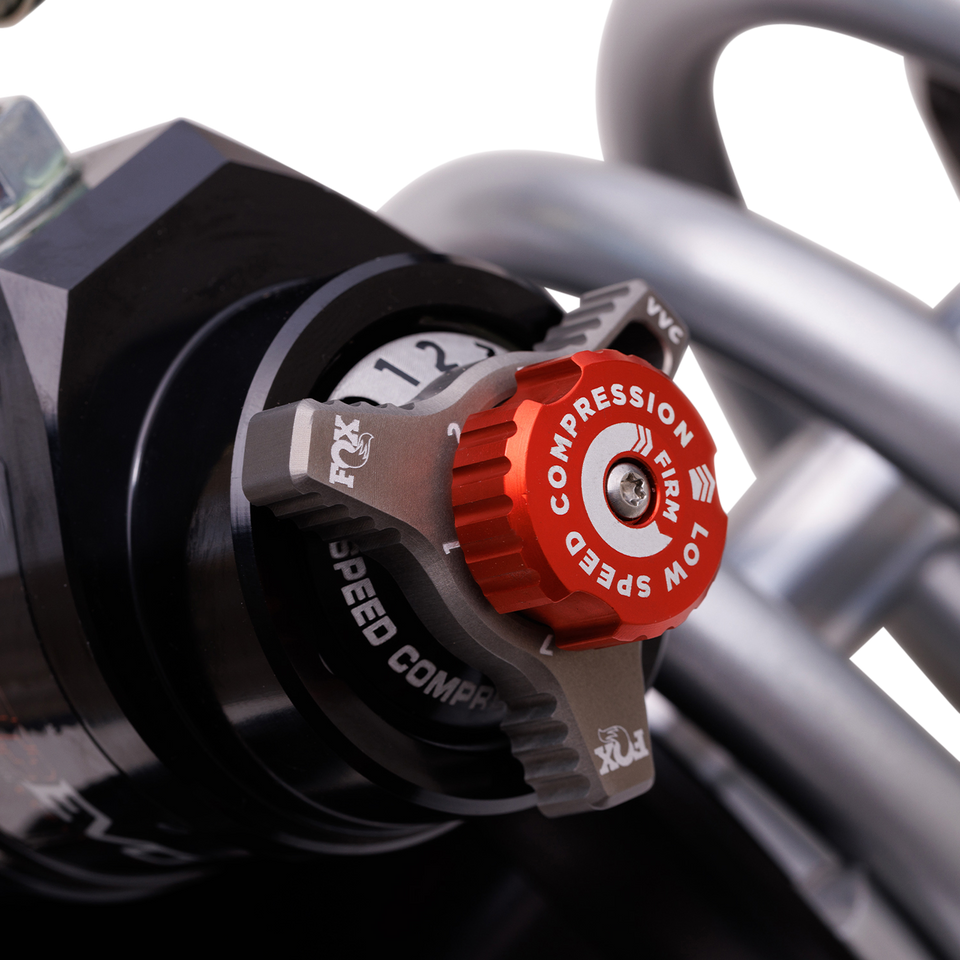

DSC EVO features Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high-speed compression without sacrificing small-bump sensitivity.
Performance Elite shocks with DSC EVO provide versatility without compromise to navigate rough terrain and enhance on-road manners while remaining comfortable and in control.
| PART NUMBER | 883-06-248 |
| FEATURES |
2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body 7/8" hard chromed steel shafts Vehicle-specific tuning maximizes performance Redundant sealing pack system: main seal, wiper seal, scraper seal External reservoir, with DSC EVO adjuster |
| SERIES | Performance Elite |
| TRAVEL | 6.74 |
| EXTENDED LENGTH | 24.38 |
| COMPRESSED LENGTH | 17.64 |
| TOP MOUNT | OEM |
| BOTTOM MOUNT | Eyelet |
| PART NUMBER | 883-06-248 |
| FEATURES |
2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body 7/8" hard chromed steel shafts Vehicle-specific tuning maximizes performance Redundant sealing pack system: main seal, wiper seal, scraper seal External reservoir, with DSC EVO adjuster |
| SERIES | Performance Elite |
| TRAVEL | 6.74 |
| EXTENDED LENGTH | 24.38 |
| COMPRESSED LENGTH | 17.64 |
| TOP MOUNT | OEM |
| BOTTOM MOUNT | Eyelet |
883-06-248 Also Fits
| Year | Make | Model | Position | Lift Height | Comments | Price |
|---|---|---|---|---|---|---|
| 2024 | Lexus | GX550 | Front | 1.5-3 (38-76mm) | $2,549.95 | |
| 2025 | Lexus | GX550 | Front | 1.5-3 (38-76mm) | $2,549.95 | |
| 2025 | Toyota | 4Runner | Front | 1.5-3 (38-76mm) | $2,549.95 | |
| 2024 | Toyota | Land Cruiser | Front | 1.5-3 (38-76mm) | 250 Series | $2,549.95 |
MANUALS & DOCUMENTS
-
01
OWNER'S MANUAL
Download ManualFull overview manual including tuning, installation, and general owner's manual.
-
03
SERVICE
Get ServiceKeep your suspension performing at factory levels. Get service or upgrade your suspension.
