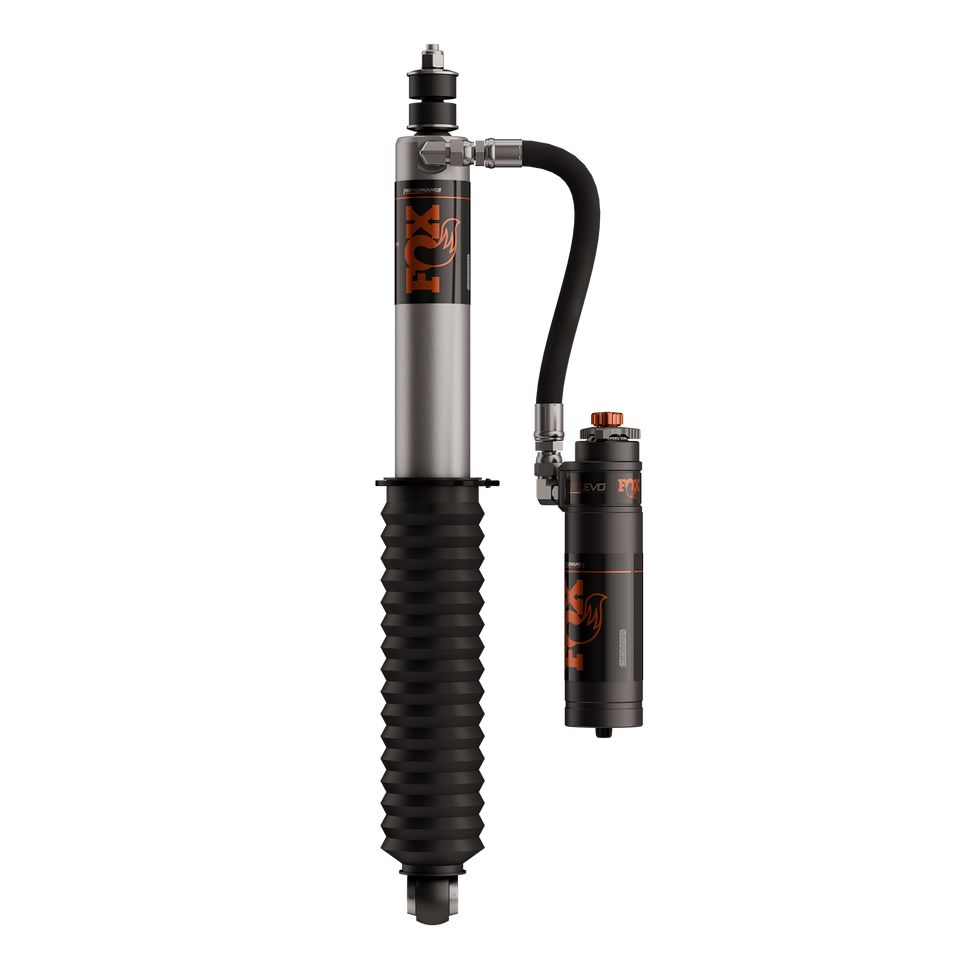

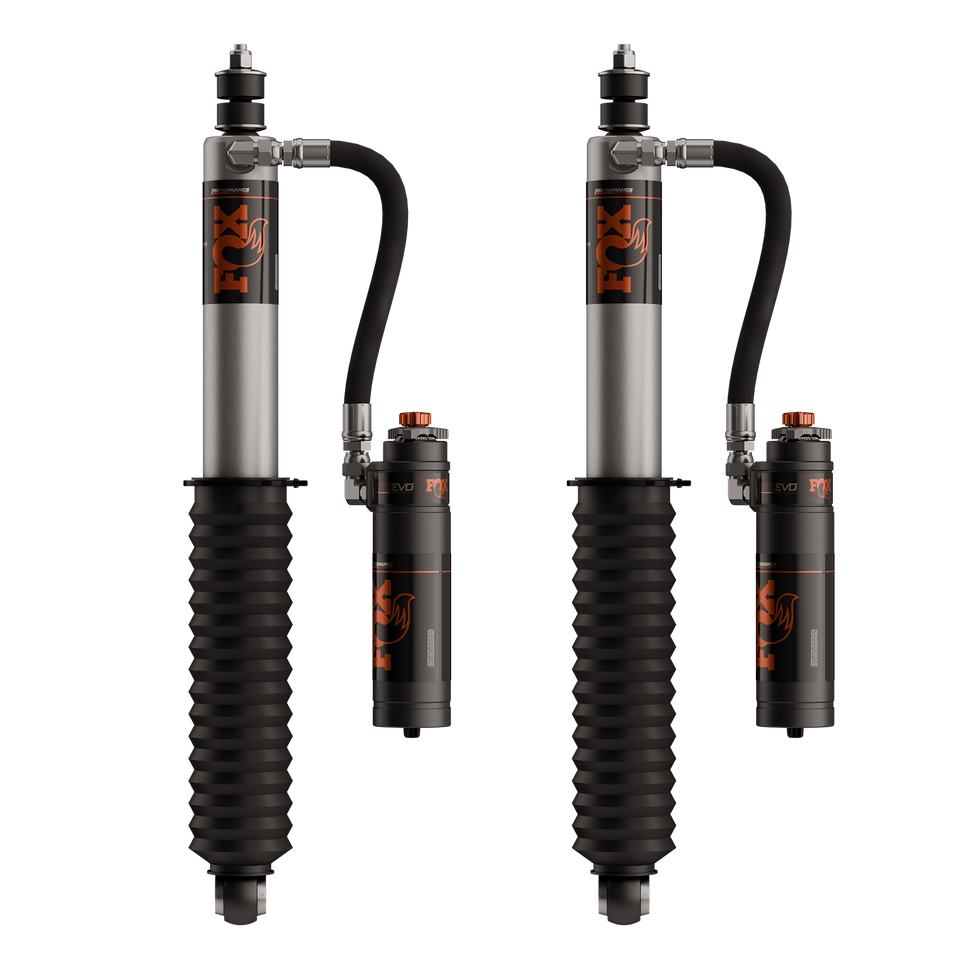

TOYOTA & LEXUS | 2.5 PERFORMANCE ELITE SERIES | HD TUNE
SKU: 883-26-168
FOX Performance Elite Series 2.5 shocks improve the LC250, GX550, and 4Runner chassis by eliminating the vehicle’s forward rake, providing a level ride height, and increasing the suspension articulation.

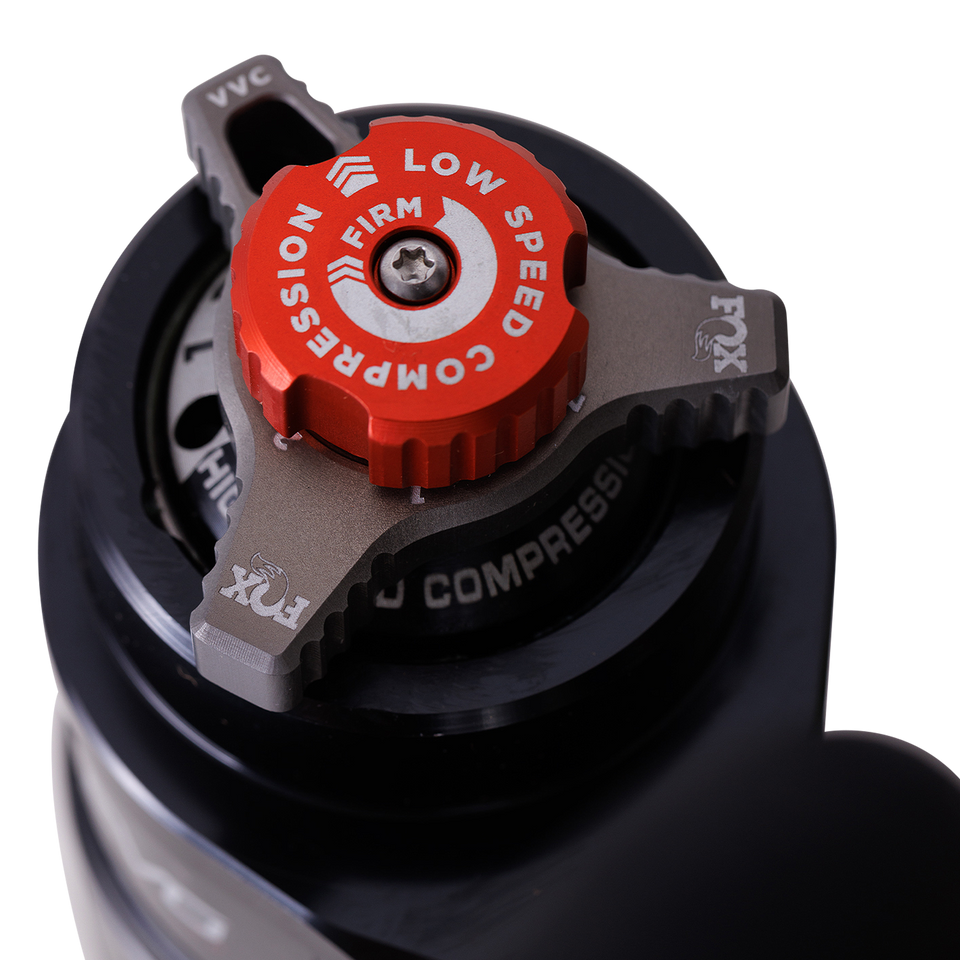

Type III anodization prevents corrosion and wear of the 2.5-inch aluminum bodies. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock.
DSC EVO features Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high-speed compression without sacrificing small-bump sensitivity.
Performance Elite shocks with DSC EVO provide versatility without compromise to navigate rough terrain and enhance on-road manners while remaining comfortable and in control.
| PART NUMBER | 883-26-168 |
| SERIES | Performance Elite |
| TRAVEL | 9.55 |
| EXTENDED LENGTH | 25.85 |
| COMPRESSED LENGTH | 16.3 |
| TOP MOUNT | Stem Top |
| BOTTOM MOUNT | Eyelet |
| PART NUMBER | 883-26-168 |
| SERIES | Performance Elite |
| TRAVEL | 9.55 |
| EXTENDED LENGTH | 25.85 |
| COMPRESSED LENGTH | 16.3 |
| TOP MOUNT | Stem Top |
| BOTTOM MOUNT | Eyelet |
883-26-168 Also Fits
| Year | Make | Model | Position | Lift Height | Comments | Price |
|---|---|---|---|---|---|---|
| 2024 | Lexus | GX550 | Rear | 0-1.5 | $1,889.95 | |
| 2025 | Lexus | GX550 | Rear | 0-1.5 | $1,889.95 | |
| 2025 | Toyota | 4Runner | Rear | 0-1.5 | $1,889.95 | |
| 2024 | Toyota | Land Cruiser | Rear | 0-1.5 | 250 Series | $1,889.95 |
