RAM 1500 | 2.0 PERFORMANCE SERIES
SKU: 985-24-032

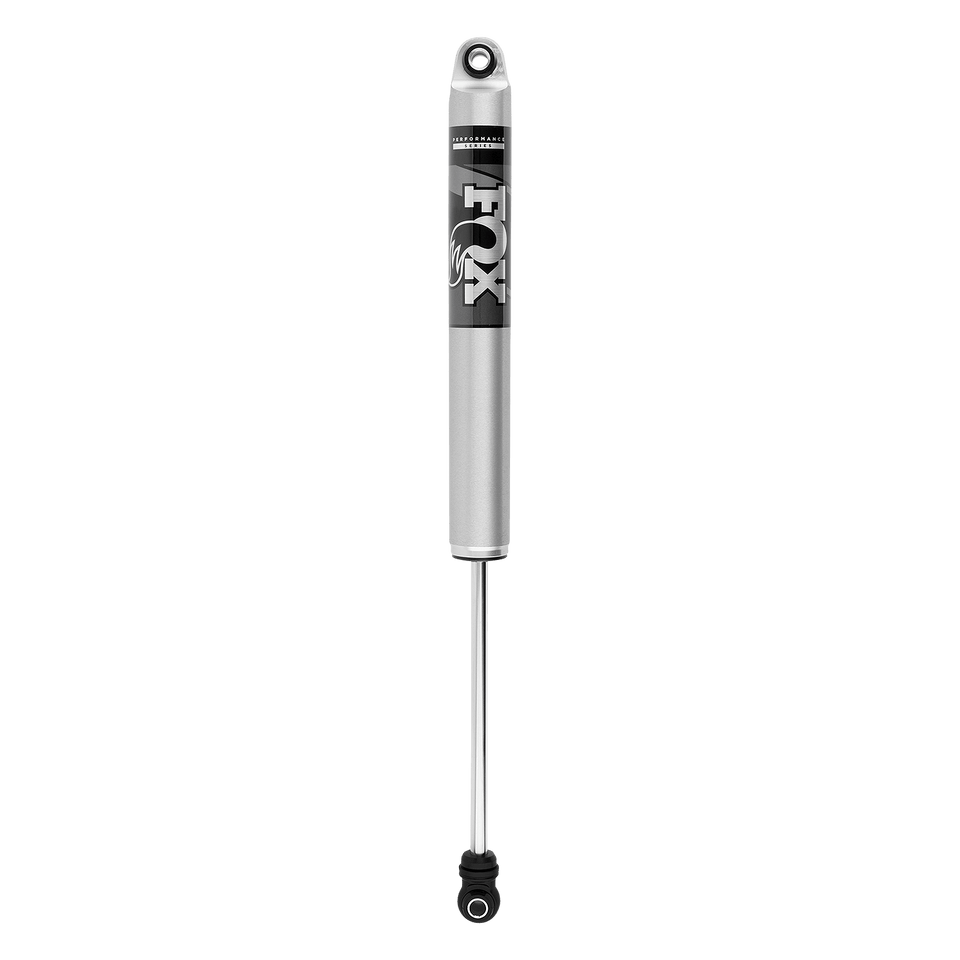

The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
| PART NUMBER | 985-24-032 |
| FEATURES | Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; IFP Separates Oil From High-Pressure Nitrogen Gas; Black Anodized CNC Machined Aluminum Components |
| SERIES | Performance |
| TRAVEL | 9.61 |
| REAR LIFT HEIGHT | 0-2 |
| BODY | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
| BODY PLATING | Clear-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 5/8" hard chrome plated heat-treated alloy steel |
| PISTON | Race-developed high-flow piston design |
| VALVING | Application specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| EXTENDED LENGTH | 26.41 |
| COMPRESSED LENGTH | 16.8 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| PART NUMBER | 985-24-032 |
| FEATURES | Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; IFP Separates Oil From High-Pressure Nitrogen Gas; Black Anodized CNC Machined Aluminum Components |
| SERIES | Performance |
| TRAVEL | 9.61 |
| REAR LIFT HEIGHT | 0-2 |
| BODY | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
| BODY PLATING | Clear-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 5/8" hard chrome plated heat-treated alloy steel |
| PISTON | Race-developed high-flow piston design |
| VALVING | Application specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| EXTENDED LENGTH | 26.41 |
| COMPRESSED LENGTH | 16.8 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
985-24-032 Also Fits
| Year | Make | Model | Sub Model | Drive Type | Fuel Type | Position | Lift Height | Comments | Price | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1994 | Dodge | Ram 1500 | All | 4WD | All | Rear | 0-1.5 | $229.95 | |||||||||||
| 1994 | Dodge | Ram 1500 | All | RWD | All | Rear | 0-2 | $229.95 | |||||||||||
| 1995 | Dodge | Ram 1500 | All | RWD | All | Rear | 0-2 | $229.95 | |||||||||||
| 1995 | Dodge | Ram 1500 | All | 4WD | All | Rear | 0-1.5 | $229.95 |
