CHEVROLET SILVERADO & GMC SIERRA 2500/3500 | 2.5 PERFORMANCE SERIES

SKU: 987-24-025

Select Vehicle

Enter Year, Make, Model to verify Fitment

$329.95

CHEVROLET SILVERADO & GMC SIERRA 2500/3500 | 2.5 PERFORMANCE SERIES

Low Stock

Find a Retailer

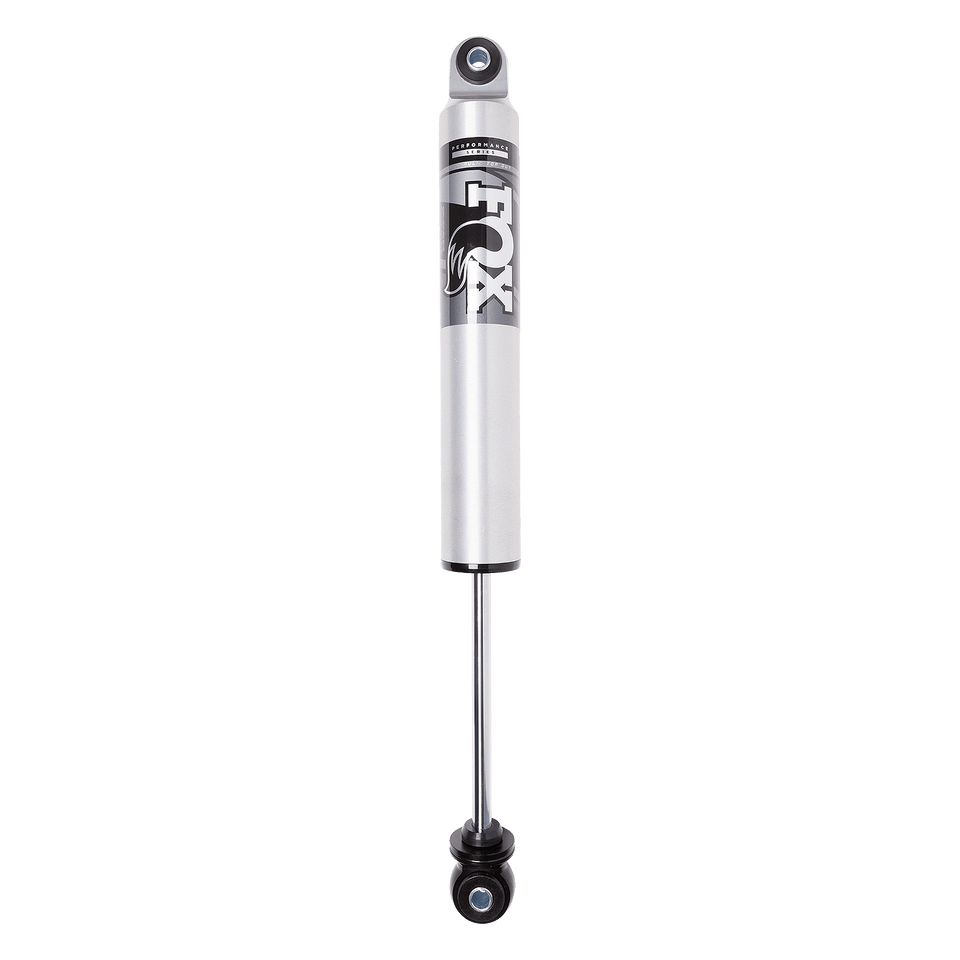

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

987-24-025 Also Fits

Year Make Model Drive Type Position Lift Height Price
2020 Chevrolet Silverado 2500 HD All Rear 6.5 $329.95
2021 Chevrolet Silverado 2500 HD All Rear 6.5 $329.95
2022 Chevrolet Silverado 2500 HD All Rear 6.5 $329.95
2023 Chevrolet Silverado 2500 HD All Rear 6.5 $329.95
2024 Chevrolet Silverado 2500 HD All Rear 6.5 $329.95
2025 Chevrolet Silverado 2500 HD All Rear 6.5 $329.95
2020 Chevrolet Silverado 3500 HD All Rear 6.5 $329.95
2021 Chevrolet Silverado 3500 HD All Rear 6.5 $329.95
2022 Chevrolet Silverado 3500 HD All Rear 6.5 $329.95
2023 Chevrolet Silverado 3500 HD All Rear 6.5 $329.95
2024 Chevrolet Silverado 3500 HD All Rear 6.5 $329.95
2025 Chevrolet Silverado 3500 HD All Rear 6.5 $329.95
2020 GMC Sierra 2500 HD All Rear 6.5 $329.95
2021 GMC Sierra 2500 HD All Rear 6.5 $329.95
2022 GMC Sierra 2500 HD All Rear 6.5 $329.95
2023 GMC Sierra 2500 HD All Rear 6.5 $329.95
2024 GMC Sierra 2500 HD All Rear 6.5 $329.95
2025 GMC Sierra 2500 HD All Rear 6.5 $329.95
2020 GMC Sierra 3500 HD All Rear 6.5 $329.95
2021 GMC Sierra 3500 HD All Rear 6.5 $329.95
2022 GMC Sierra 3500 HD All Rear 6.5 $329.95
2023 GMC Sierra 3500 HD All Rear 6.5 $329.95
2024 GMC Sierra 3500 HD All Rear 6.5 $329.95
2025 GMC Sierra 3500 HD All Rear 6.5 $329.95
PART NUMBER 987-24-025
FEATURES

2.5” Impact extruded 6061-T6 aluminum shock body
Type II clear-anodized body plating
High-flow velocity-sensitive damping
5/8” hard chrome shaft
Internal floating piston (IFP)
Hydraulic Top Out (HTO) piston

REAR LIFT HEIGHT 6.5"
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet
FITMENT NOTES Lift: 6.5 inches
