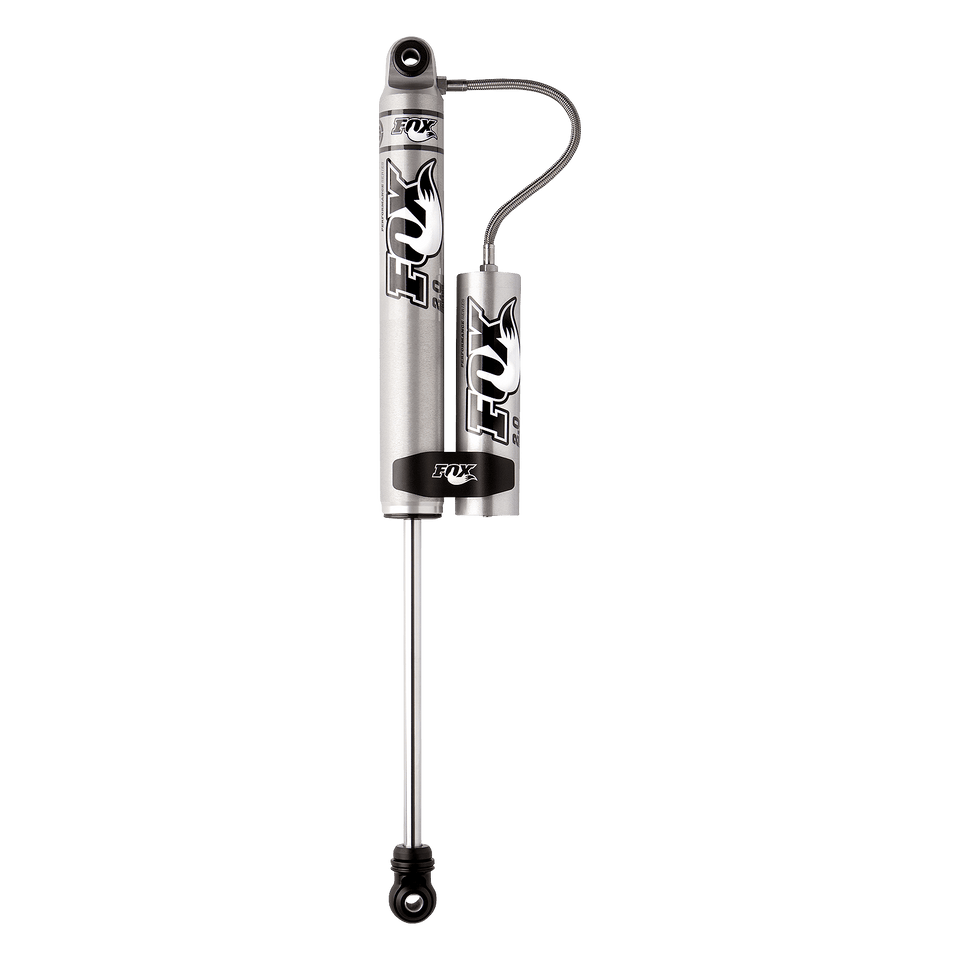

JEEP CHEROKEE & WRANGLER | 2.0 PERFORMANCE SERIES
SKU: 985-24-109
The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.
Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
| PART NUMBER | 985-24-109 |
| SERIES | Performance |
| TRAVEL | 10.62 |
| BODY | 2.0" Impact extruded 6061-T6 aluminum will resist rust over time |
| BODY PLATING | Clear-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 5/8" hard chrome plated heat-treated alloy steel |
| PISTON | Race-developed high-flow piston design |
| VALVING | Application specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| EXTENDED LENGTH | 26.87 |
| COMPRESSED LENGTH | 16.25 |
| TOP MOUNT | Stem Top |
| BOTTOM MOUNT | BP1 |
| FITMENT NOTES | Includes Billet Reservoir Clamp |
| PART NUMBER | 985-24-109 |
| SERIES | Performance |
| TRAVEL | 10.62 |
| BODY | 2.0" Impact extruded 6061-T6 aluminum will resist rust over time |
| BODY PLATING | Clear-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 5/8" hard chrome plated heat-treated alloy steel |
| PISTON | Race-developed high-flow piston design |
| VALVING | Application specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| EXTENDED LENGTH | 26.87 |
| COMPRESSED LENGTH | 16.25 |
| TOP MOUNT | Stem Top |
| BOTTOM MOUNT | BP1 |
| FITMENT NOTES | Includes Billet Reservoir Clamp |
985-24-109 Also Fits
| Year | Make | Model | Sub Model | Drive Type | Fuel Type | Doors | Position | Lift Height |
|---|---|---|---|---|---|---|---|---|
| 2005 | Jeep | Wrangler | All | All | All | All | Front | 5"-6" |
| 1993 | Jeep | Cherokee | All | All | All | All | Front | 4"-6" |
| 1998 | Jeep | Cherokee | All | All | All | All | Front | 4"-6" |
| 1997 | Jeep | Wrangler | All | All | All | All | Front | 5"-6" |
