INEOS GRENADIER | 2.0 PERFORMANCE SERIES
SKU: 885-24-270

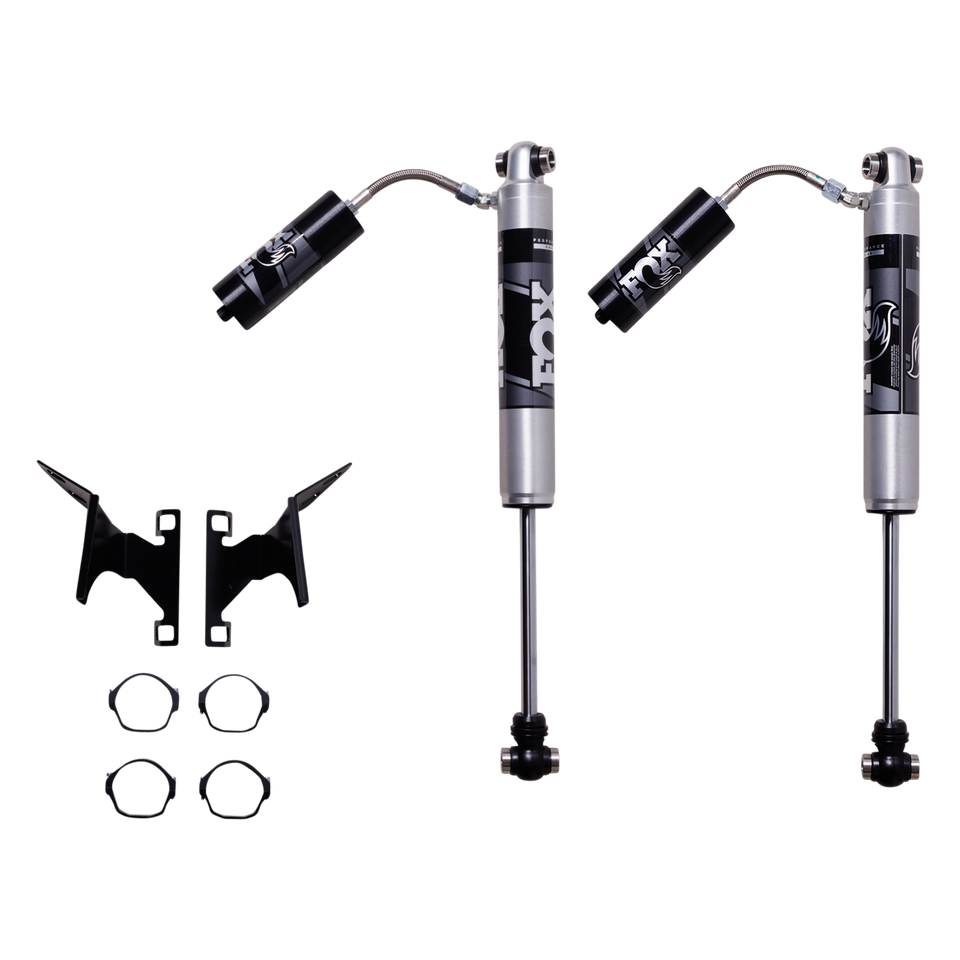

FOX Performance Series 2.0 shocks featuring remote reservoirs and an internal floating piston (IFP) are a bolt-on solution tuned for the INEOS Grenadier. Optimize vehicle performance without straining ball joints or linkages to maintain OEM reliability and vehicle behavior.
A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. Housing the IFP in a remote reservoir allows additional shock stroke to maintain available travel without compromising other OEM components. The IFP separates the shock oil from the high-pressure nitrogen, optimizing damping. All FOX shocks are fully serviceable and re-valveable, built to last the vehicle's lifetime.
Bolt-on 2.0 Performance Series shocks ride comfortably, increase damping capacity, and enhance the driving experience.
| PART NUMBER | 885-24-270 |
| FEATURES |
2.0" impact-extruded and CNC-machined 6061-T6 clear anodized aluminum one-piece body Remote reservoirs with an IFP 5/8" hard chrome-plated steel shafts Vehicle-specific valving to maximize performance Redundant sealing pack system: main seal, wiper seal, scraper seal |
| SERIES | Performance |
| TRAVEL | 8.42 |
| EXTENDED LENGTH | 23.12 |
| COMPRESSED LENGTH | 14.7 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| FITMENT NOTES | Includes reservoir mounting bracket SOLD AS PAIR |
| PART NUMBER | 885-24-270 |
| FEATURES |
2.0" impact-extruded and CNC-machined 6061-T6 clear anodized aluminum one-piece body Remote reservoirs with an IFP 5/8" hard chrome-plated steel shafts Vehicle-specific valving to maximize performance Redundant sealing pack system: main seal, wiper seal, scraper seal |
| SERIES | Performance |
| TRAVEL | 8.42 |
| EXTENDED LENGTH | 23.12 |
| COMPRESSED LENGTH | 14.7 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| FITMENT NOTES | Includes reservoir mounting bracket SOLD AS PAIR |
885-24-270 Also Fits
| Year | Make | Model | Drive Type | Position | Lift Height | Comments | Price |
|---|---|---|---|---|---|---|---|
| 2024 | INEOS | Grenadier | All | Front | 0-2 | Includes reservoir mounting bracket | $819.95 |
| 2025 | INEOS | Grenadier | All | Front | 0-2 | Includes reservoir mounting bracket | $819.95 |
| 2025 | INEOS | Grenadier Quartermaster | Rear | Includes resi to body clamp | $819.95 |
