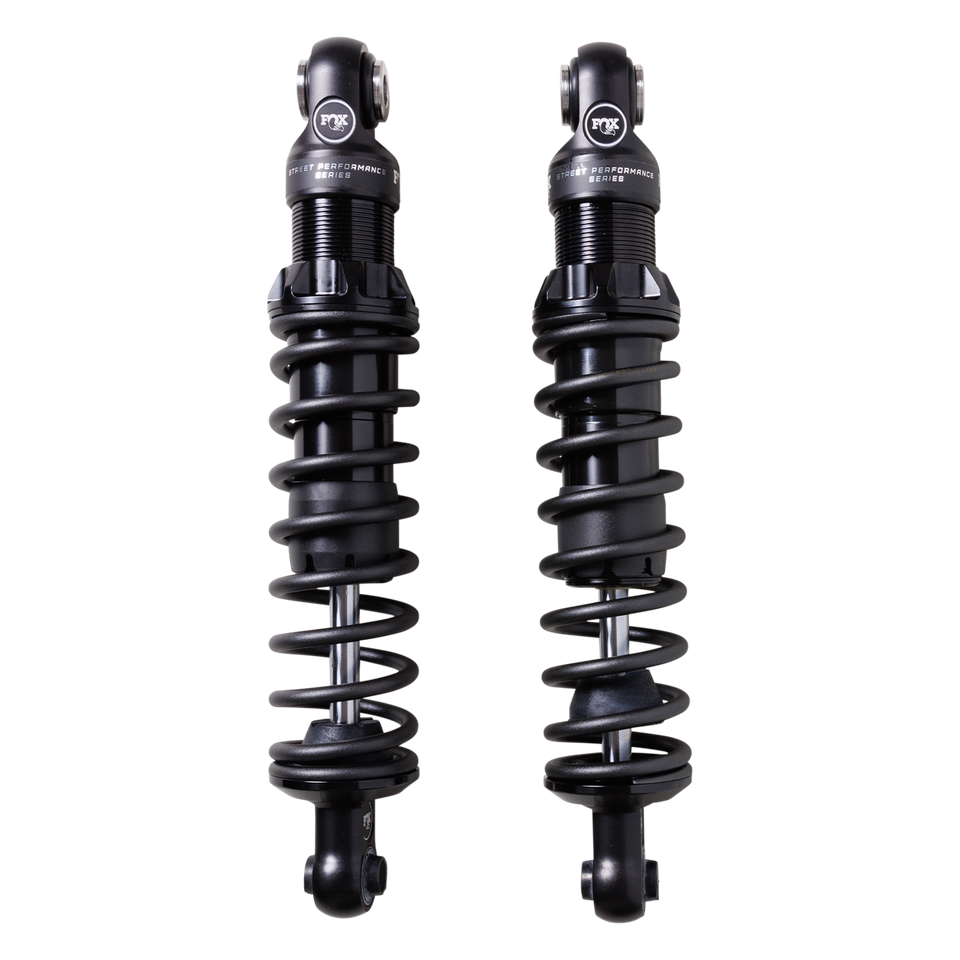

Harley-Davidson Sportster | IFP

$799.99

Harley-Davidson Sportster | IFP

Low Stock

Notify When In Stock

Free Shipping Over $99 30 Day Returns

The FOX IFP V-twin rear shocks have an internal floating piston to separate the nitrogen gas from the shock oil, maintaining damping control no matter how long you ride. Most OEM and lower priced shocks don’t have a physical barrier inside to prevent the air and oil from mixing. This means through the course of your ride, the oil in your shocks will effectively become thinner as air bubbles get mixed in. As the air mixes with the oil, it causes inconsistent damping, leading to a harsh ride over bumps and often a floaty disconnected feeling from the wheels. Our IFP V-Twin touring shocks will never let air and oil mix no matter how many hours you ride. FOX’s IFP design—combined with vehicle specific damping and linear spring rates—gives you a confident connection to the road while soaking up the bumps, mile after mile.

Looking for the FOX full bike solution? Start with our IFP rear shocks and add our new FOX fork spring kit or our new GRIP-Street Performance fork cartridge kit to balance performance and extend your ride. Solo, loaded or two-up riding will never be the same.

PART NUMBER 897-27-015
FEATURES

Model-specific optimized ride tune
Gas-charged mono-tube with internal floating piston (IFP)
1.5-inch 6061-T6 aluminum type III hard anodized body
Fully rebuildable and revalvable
Advanced high-flow, deflective disc velocity-sensitive damping
½-inch low friction, super-finished hard chrome shaft
Matte black spring and black anodized preload ring

SERIES Street Performance
TRAVEL 3.16
EXTENDED LENGTH 13
COMPRESSED LENGTH 9.84
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet
SPRING RATE Standard (Rider Weight up to 280lb)
PART NUMBER 897-27-016
FEATURES

Model-specific optimized ride tune
Gas-charged mono-tube with internal floating piston (IFP)
1.5-inch 6061-T6 aluminum type III hard anodized body
Fully rebuildable and revalvable
Advanced high-flow, deflective disc velocity-sensitive damping
½-inch low friction, super-finished hard chrome shaft
Matte black spring and black anodized preload ring

SERIES Street Performance
TRAVEL 1.56
EXTENDED LENGTH 11
COMPRESSED LENGTH 9.84
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet
SPRING RATE Standard (Rider Weight up to 240lb)
PART NUMBER 897-27-022
FEATURES

Model-specific optimized ride tune
Gas-charged mono-tube with internal floating piston (IFP)
1.5-inch 6061-T6 aluminum type III hard anodized body
Fully rebuildable and revalvable
Advanced high-flow, deflective disc velocity-sensitive damping
½-inch low friction, super-finished hard chrome shaft
Matte black spring and black anodized preload ring

SERIES Street Performance
TRAVEL 2.56
EXTENDED LENGTH 12
COMPRESSED LENGTH 9.45
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet
SPRING RATE Standard (Rider Weight up to 240lb)
What's In The Box?

2 Shocks
Spring preload spanner wrench
Alignment Kit
Instructions and user manual
Fox sticker

Shipping & returns policy

Apparel & Bicycle Product Flat Rate Shipping

We offer free standard shipping on orders of $99 and above. We offer standard flat rate shipping for $10 on orders below $99. Please note we do not ship outside of the USA. Please visit our CanadianEuropean or Australian FOX Shop for international shipment. Typically you will receive a tracking number within 2 business days following your order.

Motorcycle Product Flat Rate Shipping

We offer free standard shipping on orders of $99 and above. Please note we do not ship outside of the USA. Typically you will receive a tracking number within 2 business days following your order.

Exchanges

Due to the high demand of our products, the fastest way to ensure you can exchange an online order for the product you would like is to please go ahead and purchase that new product immediately from the website. Following that please fill out the returns form and following instructions from our Customer Service team, send the product back for a refund. Please note we do not refund shipping charges and all products must be returned with original packaging in unused condition.

Returns

Within 30 days of purchase online FOX will accept returns of all returned with original packaging in unused condition. To initiate the return please fill out the returns form below and await contact by email from our Customer Service Team. Please note shipping charges will not be refunded.

Orders placed between November 15, 2024 and December 31st, 2024 may be returned for refund by February 1st, 2025. Note all other terms of returns are required. Products must be in original packaging in unused condition.

Also Fits

Year Make Model Position Price
1995 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
1996 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
1997 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
1998 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
1999 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2000 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2001 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2002 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2003 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2004 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2005 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2006 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2007 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2008 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2009 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2010 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2011 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2012 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2013 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2014 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2015 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2016 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2017 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2018 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2019 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2020 Harley-Davidson XL1200C Sportster 1200 Custom Rear $799.99
2016 Harley-Davidson XL1200CX Roadster Rear $799.99
2017 Harley-Davidson XL1200CX Roadster Rear $799.99
2018 Harley-Davidson XL1200CX Roadster Rear $799.99
2019 Harley-Davidson XL1200CX Roadster Rear $799.99
2020 Harley-Davidson XL1200CX Roadster Rear $799.99
2006 Harley-Davidson XL1200L Sportster 1200 Low Rear $799.99
2007 Harley-Davidson XL1200L Sportster 1200 Low Rear $799.99
2008 Harley-Davidson XL1200L Sportster 1200 Low Rear $799.99
2009 Harley-Davidson XL1200L Sportster 1200 Low Rear $799.99
2010 Harley-Davidson XL1200L Sportster 1200 Low Rear $799.99
2011 Harley-Davidson XL1200L Sportster 1200 Low Rear $799.99
2018 Harley-Davidson XL1200NS Iron 1200 Rear $799.99
2019 Harley-Davidson XL1200NS Iron 1200 Rear $799.99
2020 Harley-Davidson XL1200NS Iron 1200 Rear $799.99
2021 Harley-Davidson XL1200NS Iron 1200 Rear $799.99
2007 Harley-Davidson XL1200N Sportster 1200 Nightster Rear $799.99
2008 Harley-Davidson XL1200N Sportster 1200 Nightster Rear $799.99
2009 Harley-Davidson XL1200N Sportster 1200 Nightster Rear $799.99
2010 Harley-Davidson XL1200N Sportster 1200 Nightster Rear $799.99
2011 Harley-Davidson XL1200N Sportster 1200 Nightster Rear $799.99
2012 Harley-Davidson XL1200N Sportster 1200 Nightster Rear $799.99
2004 Harley-Davidson XL1200R Sportster 1200 Roadster Rear $799.99
2005 Harley-Davidson XL1200R Sportster 1200 Roadster Rear $799.99
2006 Harley-Davidson XL1200R Sportster 1200 Roadster Rear $799.99
2007 Harley-Davidson XL1200R Sportster 1200 Roadster Rear $799.99
2008 Harley-Davidson XL1200R Sportster 1200 Roadster Rear $799.99
2009 Harley-Davidson XL1200R Sportster 1200 Roadster Rear $799.99
1995 Harley-Davidson XL1200S Sportster 1200 Sport Rear $799.99
1996 Harley-Davidson XL1200S Sportster 1200 Sport Rear $799.99
1997 Harley-Davidson XL1200S Sportster 1200 Sport Rear $799.99
1998 Harley-Davidson XL1200S Sportster 1200 Sport Rear $799.99
1999 Harley-Davidson XL1200S Sportster 1200 Sport Rear $799.99
2000 Harley-Davidson XL1200S Sportster 1200 Sport Rear $799.99
2001 Harley-Davidson XL1200S Sportster 1200 Sport Rear $799.99
2002 Harley-Davidson XL1200S Sportster 1200 Sport Rear $799.99
2003 Harley-Davidson XL1200S Sportster 1200 Sport Rear $799.99
2014 Harley-Davidson XL1200T SuperLow 1200T Rear $799.99
2015 Harley-Davidson XL1200T SuperLow 1200T Rear $799.99
2016 Harley-Davidson XL1200T SuperLow 1200T Rear $799.99
2017 Harley-Davidson XL1200T SuperLow 1200T Rear $799.99
2018 Harley-Davidson XL1200T SuperLow 1200T Rear $799.99
2019 Harley-Davidson XL1200T SuperLow 1200T Rear $799.99
2012 Harley-Davidson XL1200V Seventy-Two Rear $799.99
2013 Harley-Davidson XL1200V Seventy-Two Rear $799.99
2014 Harley-Davidson XL1200V Seventy-Two Rear $799.99
2015 Harley-Davidson XL1200V Seventy-Two Rear $799.99
2016 Harley-Davidson XL1200V Seventy-Two Rear $799.99
2017 Harley-Davidson XL1200V Seventy-Two Rear $799.99
2010 Harley-Davidson XL1200X Forty-Eight Rear $799.99
2011 Harley-Davidson XL1200X Forty-Eight Rear $799.99
2012 Harley-Davidson XL1200X Forty-Eight Rear $799.99
2013 Harley-Davidson XL1200X Forty-Eight Rear $799.99
2014 Harley-Davidson XL1200X Forty-Eight Rear $799.99
2015 Harley-Davidson XL1200X Forty-Eight Rear $799.99
2016 Harley-Davidson XL1200X Forty-Eight Rear $799.99
2017 Harley-Davidson XL1200X Forty-Eight Rear $799.99
2018 Harley-Davidson XL1200X Forty-Eight Rear $799.99
2019 Harley-Davidson XL1200X Forty-Eight Rear $799.99
2020 Harley-Davidson XL1200X Forty-Eight Rear $799.99
2021 Harley-Davidson XL1200X Forty-Eight Rear $799.99
2022 Harley-Davidson XL1200X Forty-Eight Rear $799.99
2018 Harley-Davidson XL1200XS Forty-Eight Special Rear $799.99
2019 Harley-Davidson XL1200XS Forty-Eight Special Rear $799.99
2020 Harley-Davidson XL1200XS Forty-Eight Special Rear $799.99
2007 Harley-Davidson XL50 50th Anniversary Sportster Rear $799.99
1999 Harley-Davidson XL883C Sportster 883 Custom Rear $799.99
2000 Harley-Davidson XL883C Sportster 883 Custom Rear $799.99
2001 Harley-Davidson XL883C Sportster 883 Custom Rear $799.99
2002 Harley-Davidson XL883C Sportster 883 Custom Rear $799.99
2003 Harley-Davidson XL883C Sportster 883 Custom Rear $799.99
2004 Harley-Davidson XL883C Sportster 883 Custom Rear $799.99
2005 Harley-Davidson XL883C Sportster 883 Custom Rear $799.99
2006 Harley-Davidson XL883C Sportster 883 Custom Rear $799.99
2007 Harley-Davidson XL883C Sportster 883 Custom Rear $799.99
2008 Harley-Davidson XL883C Sportster 883 Custom Rear $799.99
2009 Harley-Davidson XL883C Sportster 883 Custom Rear $799.99
2010 Harley-Davidson XL883C Sportster 883 Custom Rear $799.99
2005 Harley-Davidson XL883L Sportster 883 Low Rear $799.99
2006 Harley-Davidson XL883L Sportster 883 Low Rear $799.99
2007 Harley-Davidson XL883L Sportster 883 Low Rear $799.99
2008 Harley-Davidson XL883L Sportster 883 Low Rear $799.99
2009 Harley-Davidson XL883L Sportster 883 Low Rear $799.99
2010 Harley-Davidson XL883L Sportster 883 Low Rear $799.99
2011 Harley-Davidson XL883L SuperLow Rear $799.99
2012 Harley-Davidson XL883L SuperLow Rear $799.99
2013 Harley-Davidson XL883L SuperLow Rear $799.99
2014 Harley-Davidson XL883L SuperLow Rear $799.99
2015 Harley-Davidson XL883L SuperLow Rear $799.99
2016 Harley-Davidson XL883L SuperLow Rear $799.99
2017 Harley-Davidson XL883L SuperLow Rear $799.99
2018 Harley-Davidson XL883L SuperLow Rear $799.99
2019 Harley-Davidson XL883L SuperLow Rear $799.99
2020 Harley-Davidson XL883L SuperLow Rear $799.99
2009 Harley-Davidson XL883N Iron 883 Rear $799.99
2010 Harley-Davidson XL883N Iron 883 Rear $799.99
2011 Harley-Davidson XL883N Iron 883 Rear $799.99
2012 Harley-Davidson XL883N Iron 883 Rear $799.99
2013 Harley-Davidson XL883N Iron 883 Rear $799.99
2014 Harley-Davidson XL883N Iron 883 Rear $799.99
2015 Harley-Davidson XL883N Iron 883 Rear $799.99
2016 Harley-Davidson XL883N Iron 883 Rear $799.99
2017 Harley-Davidson XL883N Iron 883 Rear $799.99
2018 Harley-Davidson XL883N Iron 883 Rear $799.99
2019 Harley-Davidson XL883N Iron 883 Rear $799.99
2020 Harley-Davidson XL883N Iron 883 Rear $799.99
2021 Harley-Davidson XL883N Iron 883 Rear $799.99
2022 Harley-Davidson XL883N Iron 883 Rear $799.99
2002 Harley-Davidson XL883R Sportster 883 Roadster Rear $799.99
2003 Harley-Davidson XL883R Sportster 883 Roadster Rear $799.99
2005 Harley-Davidson XL883R Sportster 883 Roadster Rear $799.99
2006 Harley-Davidson XL883R Sportster 883 Roadster Rear $799.99
2007 Harley-Davidson XL883R Sportster 883 Roadster Rear $799.99
2008 Harley-Davidson XL883R Sportster 883 Roadster Rear $799.99
2009 Harley-Davidson XL883R Sportster 883 Roadster Rear $799.99
2010 Harley-Davidson XL883R Sportster 883 Roadster Rear $799.99
2011 Harley-Davidson XL883R Sportster 883 Roadster Rear $799.99
2012 Harley-Davidson XL883R Sportster 883 Roadster Rear $799.99
2013 Harley-Davidson XL883R Sportster 883 Roadster Rear $799.99
2014 Harley-Davidson XL883R Sportster 883 Roadster Rear $799.99
2015 Harley-Davidson XL883R Sportster 883 Roadster Rear $799.99
2016 Harley-Davidson XL883R Sportster 883 Roadster Rear $799.99
2017 Harley-Davidson XL883R Sportster 883 Roadster Rear $799.99
2004 Harley-Davidson XL883 Sportster Rear $799.99
2005 Harley-Davidson XL883 Sportster Rear $799.99
2006 Harley-Davidson XL883 Sportster Rear $799.99
2007 Harley-Davidson XL883 Sportster Rear $799.99
2008 Harley-Davidson XL883 Sportster Rear $799.99
1988 Harley-Davidson XLH1200 Rear $799.99
1989 Harley-Davidson XLH1200 Rear $799.99
1990 Harley-Davidson XLH1200 Rear $799.99
1991 Harley-Davidson XLH1200 Rear $799.99
1992 Harley-Davidson XLH1200 Rear $799.99
1993 Harley-Davidson XLH1200 Rear $799.99
1994 Harley-Davidson XLH1200 Rear $799.99
1995 Harley-Davidson XLH1200 Rear $799.99
1996 Harley-Davidson XLH1200 Rear $799.99
1997 Harley-Davidson XLH1200 Rear $799.99
1998 Harley-Davidson XLH1200 Rear $799.99
1999 Harley-Davidson XLH1200 Rear $799.99
2000 Harley-Davidson XLH1200 Rear $799.99
2001 Harley-Davidson XLH1200 Rear $799.99
2002 Harley-Davidson XLH1200 Rear $799.99
2003 Harley-Davidson XLH1200 Rear $799.99
1988 Harley-Davidson XLH883 Rear $799.99
1989 Harley-Davidson XLH883 Rear $799.99
1990 Harley-Davidson XLH883 Rear $799.99
1991 Harley-Davidson XLH883 Rear $799.99
1992 Harley-Davidson XLH883 Rear $799.99
1993 Harley-Davidson XLH883 Rear $799.99
1994 Harley-Davidson XLH883 Rear $799.99
1995 Harley-Davidson XLH883 Rear $799.99
1996 Harley-Davidson XLH883 Rear $799.99
1997 Harley-Davidson XLH883 Rear $799.99
1998 Harley-Davidson XLH883 Rear $799.99
1999 Harley-Davidson XLH883 Rear $799.99
2000 Harley-Davidson XLH883 Rear $799.99
2001 Harley-Davidson XLH883 Rear $799.99
2002 Harley-Davidson XLH883 Rear $799.99
2003 Harley-Davidson XLH883 Rear $799.99
2004 Harley-Davidson XLH883 Rear $799.99
2005 Harley-Davidson XLH883 Rear $799.99
2006 Harley-Davidson XLH883 Rear $799.99
2007 Harley-Davidson XLH883 Rear $799.99
2008 Harley-Davidson XLH883 Rear $799.99
2009 Harley-Davidson XLH883 Rear $799.99
1988 Harley-Davidson XLH883DLX Sportster 883 Deluxe Rear $799.99
1989 Harley-Davidson XLH883DLX Sportster 883 Deluxe Rear $799.99
1990 Harley-Davidson XLH883DLX Sportster 883 Deluxe Rear $799.99
1991 Harley-Davidson XLH883DLX Sportster 883 Deluxe Rear $799.99
1992 Harley-Davidson XLH883DLX Sportster 883 Deluxe Rear $799.99
1993 Harley-Davidson XLH883DLX Sportster 883 Deluxe Rear $799.99
1994 Harley-Davidson XLH883DLX Sportster 883 Deluxe Rear $799.99
1995 Harley-Davidson XLH883DLX Sportster 883 Deluxe Rear $799.99
1996 Harley-Davidson XLH883DLX Sportster 883 Deluxe Rear $799.99
1988 Harley-Davidson XLH883HUG Sportster 883 Hugger Rear $799.99
1989 Harley-Davidson XLH883HUG Sportster 883 Hugger Rear $799.99
1990 Harley-Davidson XLH883HUG Sportster 883 Hugger Rear $799.99
1991 Harley-Davidson XLH883HUG Sportster 883 Hugger Rear $799.99
1992 Harley-Davidson XLH883HUG Sportster 883 Hugger Rear $799.99
1993 Harley-Davidson XLH883HUG Sportster 883 Hugger Rear $799.99
1994 Harley-Davidson XLH883HUG Sportster 883 Hugger Rear $799.99
1995 Harley-Davidson XLH883HUG Sportster 883 Hugger Rear $799.99
1996 Harley-Davidson XLH883HUG Sportster 883 Hugger Rear $799.99
1997 Harley-Davidson XLH883HUG Sportster 883 Hugger Rear $799.99
1998 Harley-Davidson XLH883HUG Sportster 883 Hugger Rear $799.99
1999 Harley-Davidson XLH883HUG Sportster 883 Hugger Rear $799.99
2000 Harley-Davidson XLH883HUG Sportster 883 Hugger Rear $799.99
2001 Harley-Davidson XLH883HUG Sportster 883 Hugger Rear $799.99
2002 Harley-Davidson XLH883HUG Sportster 883 Hugger Rear $799.99
2003 Harley-Davidson XLH883HUG Sportster 883 Hugger Rear $799.99
2008 Harley-Davidson XR1200 Rear $799.99
2009 Harley-Davidson XR1200 Rear $799.99
2010 Harley-Davidson XR1200 Rear $799.99
2010 Harley-Davidson XR1200X Rear $799.99
2011 Harley-Davidson XR1200X Rear $799.99
2012 Harley-Davidson XR1200X Rear $799.99

TUNING & MANUALS

  • 1

    Owners Manual

    Full overview manual including tuning, installation and general owners manual.

    Learn More
  • 2

    Warranty

    Full warranty information for all FOX suspension products.

    Learn More
  • 3

    Service

    Keep your suspension performing at factory levels. Get service or upgrade your suspension.

    Get Service
