Harley-Davidson Softail | IFP QSR
SKU: Multiple

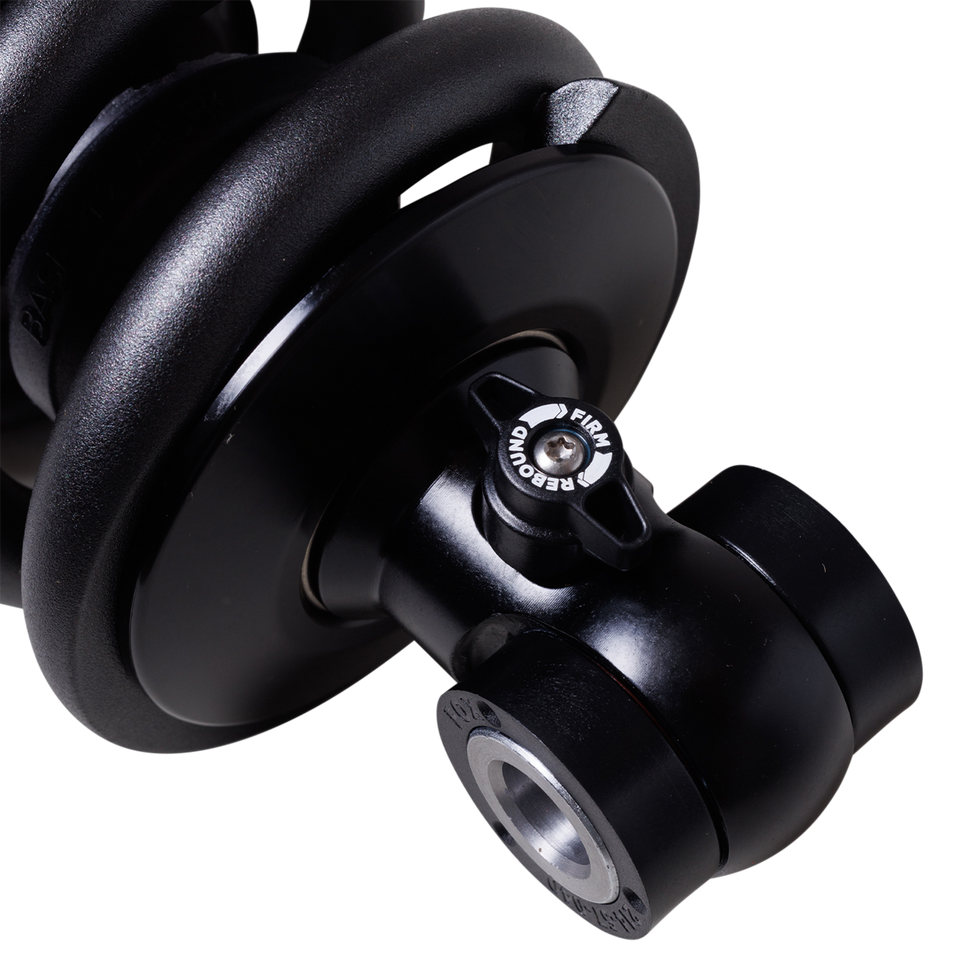

Experience ultimate comfort and control with the FOX IFP-QSR rear shock. With an internal floating piston (IFP) to separate the nitrogen gas from the shock oil, this shock will maintain damping control no matter how long you ride. Three distinct rebound settings (QSR) make it easy to dial in the correct rebound for different riding situations: comfort on bumpy backroads, “any road” balance of control and comfort, and a “glued to the asphalt” feeling on smooth twisty roads.Combine with the new FOX GRIP Street Performance Fork Cartridge Kit for Harley Softail to get the best possible ride quality with the ultimate in adjustability for comfort and control.
| PART NUMBER | 897-27-207 |
| FEATURES |
Model-specific optimized ride tune QSR: 3-position quick switch rebound adjustment Spring preload setting guide marks Gas-charged mono-tube with internal floating piston (IFP) 2-inch diameter 6061-T6 aluminum type III hard-anodized body Fully rebuildable and re-valvable Advanced high-flow, deflective disc velocity-sensitive damping 5/8-inch diameter, low friction, super-finished hard chrome shaft Matte black spring and black-anodized preload ring |
| SERIES | Street Performance |
| TRAVEL | 1.42 |
| EXTENDED LENGTH | 12.5 |
| COMPRESSED LENGTH | 11 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| SPRING RATE | Standard (Rider Weight up to 240lb) |
| PART NUMBER | 897-27-208 |
| FEATURES |
Model-specific optimized ride tune QSR: 3-position quick switch rebound adjustment Spring preload setting guide marks Gas-charged mono-tube with internal floating piston (IFP) 2-inch diameter 6061-T6 aluminum type III hard-anodized body Fully rebuildable and re-valvable Advanced high-flow, deflective disc velocity-sensitive damping 5/8-inch diameter, low friction, super-finished hard chrome shaft Matte black spring and black-anodized preload ring |
| SERIES | Street Performance |
| TRAVEL | 2 |
| EXTENDED LENGTH | 13 |
| COMPRESSED LENGTH | 11 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| SPRING RATE | Standard (Rider Weight up to 240lb) |
| PART NUMBER | 897-27-309 |
| FEATURES |
Model-specific optimized ride tune QSR: 3-position quick switch rebound adjustment Spring preload setting guide marks Gas-charged mono-tube with internal floating piston (IFP) 2-inch diameter 6061-T6 aluminum type III hard-anodized body Fully rebuildable and re-valvable Advanced high-flow, deflective disc velocity-sensitive damping 5/8-inch diameter, low friction, super-finished hard chrome shaft Matte black spring and black-anodized preload ring |
| SERIES | Street Performance |
| TRAVEL | 2.5 |
| EXTENDED LENGTH | 13.5 |
| COMPRESSED LENGTH | 11 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| SPRING RATE | Standard (Rider Weight up to 240lb) |
