Harley-Davidson Dyna | IFP QSR
SKU: Multiple

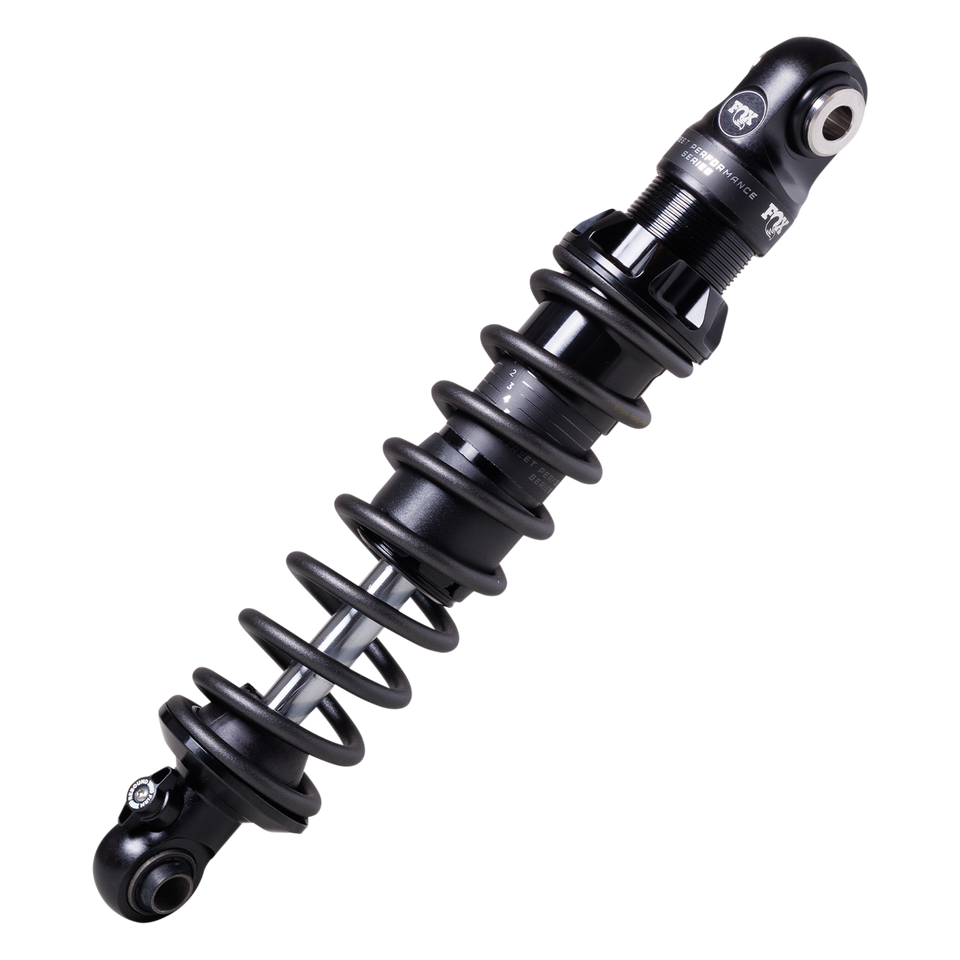

Experience ultimate comfort and control with the FOX IFP-QSR rear shock. With an internal floating piston (IFP) to separate the nitrogen gas from the shock oil, this shock will maintain damping control no matter how long you ride. Three distinct rebound settings (QSR) make it easy to dial in the correct rebound for different riding situations: comfort on bumpy backroads, “any road” balance of control and comfort, and a “glued to the asphalt” feeling on smooth twisty roads.Combine with the new FOX GRIP Street Performance Fork Cartridge Kit for Harley Dyna to get the best possible ride quality with the ultimate in adjustability for comfort and control.
| PART NUMBER | 897-27-205 |
| FEATURES |
Model-specific optimized ride tune QSR: 3-position quick switch rebound adjustment Spring preload setting guide marks Gas-charged mono-tube with internal floating piston (IFP) 1.5-inch diameter 6061-T6 aluminum type III hard-anodized body Fully rebuildable and re-valvable Advanced high-flow, deflective disc velocity-sensitive damping 5/8-inch diameter low friction, super-finished hard chrome shaft Matte black spring and black-anodized preload ring |
| SERIES | Street Performance |
| TRAVEL | 2.51 |
| EXTENDED LENGTH | 12.5 |
| COMPRESSED LENGTH | 10.05 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| SPRING RATE | Standard (Rider Weight up to 240lb) |
| PART NUMBER | 897-27-206 |
| FEATURES |
Model-specific optimized ride tune QSR: 3-position quick switch rebound adjustment Spring preload setting guide marks Gas-charged mono-tube with internal floating piston (IFP) 1.5-inch diameter 6061-T6 aluminum type III hard-anodized body Fully rebuildable and re-valvable Advanced high-flow, deflective disc velocity-sensitive damping 5/8-inch diameter low friction, super-finished hard chrome shaft Matte black spring and black-anodized preload ring |
| SERIES | Street Performance |
| TRAVEL | 3.51 |
| EXTENDED LENGTH | 13.5 |
| COMPRESSED LENGTH | 10.05 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| SPRING RATE | Standard (Rider Weight up to 240lb) |
Apparel & Bicycle Product Flat Rate Shipping
We offer free standard shipping on orders of $99 and above. We offer standard flat rate shipping for $10 on orders below $99 and $20 for any express shipping. Please note we do not ship outside of the USA and we cannot Express ship to PO Boxes. Please visit our Canadian or Australian FOX Shop for international shipment. Typically you will receive a tracking number within 2 business days following your order. Please include your PO Box number if you would like it shipped to your PO Box (note we cannot ship express to PO Boxes).
Motorcycle Product Flat Rate Shipping
We offer free standard shipping on orders of $99 and above. Please note we do not ship outside of the USA. Typically you will receive a tracking number within 2 business days following your order.
Exchanges
Due to the high demand of our products, the fastest way to ensure you can exchange an online order for the product you would like is to please go ahead and purchase that new product immediately from the website. Following that please fill out the returns form and following instructions from our Customer Service team, send the product back for a refund. Please note we do not refund shipping charges and all products must be returned with original packaging in unused condition.
Returns
FOX will accept returns of all product with original packaging in unused condition within 30 days of delivery date. To initiate the return please fill out the returns form below and await contact by email from our Customer Service Team. Please note shipping charges will not be refunded. Return shipping labels are not included.
Please pack and seal your return securely using a tracked and insured carrier service and send to:
| Bicycle + Apparel | Motorcycle |
| FOX Factory 38 Isidor Ct Suite 120, Sparks, NV 89441 |
FOX Factory |
Please write your RA number provided by our service team on the outside of the box for quicker refunds.
| PART NUMBER | 897-27-205 |
| FEATURES |
Model-specific optimized ride tune QSR: 3-position quick switch rebound adjustment Spring preload setting guide marks Gas-charged mono-tube with internal floating piston (IFP) 1.5-inch diameter 6061-T6 aluminum type III hard-anodized body Fully rebuildable and re-valvable Advanced high-flow, deflective disc velocity-sensitive damping 5/8-inch diameter low friction, super-finished hard chrome shaft Matte black spring and black-anodized preload ring |
| SERIES | Street Performance |
| TRAVEL | 2.51 |
| EXTENDED LENGTH | 12.5 |
| COMPRESSED LENGTH | 10.05 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| SPRING RATE | Standard (Rider Weight up to 240lb) |
| PART NUMBER | 897-27-206 |
| FEATURES |
Model-specific optimized ride tune QSR: 3-position quick switch rebound adjustment Spring preload setting guide marks Gas-charged mono-tube with internal floating piston (IFP) 1.5-inch diameter 6061-T6 aluminum type III hard-anodized body Fully rebuildable and re-valvable Advanced high-flow, deflective disc velocity-sensitive damping 5/8-inch diameter low friction, super-finished hard chrome shaft Matte black spring and black-anodized preload ring |
| SERIES | Street Performance |
| TRAVEL | 3.51 |
| EXTENDED LENGTH | 13.5 |
| COMPRESSED LENGTH | 10.05 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| SPRING RATE | Standard (Rider Weight up to 240lb) |
Apparel & Bicycle Product Flat Rate Shipping
We offer free standard shipping on orders of $99 and above. We offer standard flat rate shipping for $10 on orders below $99 and $20 for any express shipping. Please note we do not ship outside of the USA and we cannot Express ship to PO Boxes. Please visit our Canadian or Australian FOX Shop for international shipment. Typically you will receive a tracking number within 2 business days following your order. Please include your PO Box number if you would like it shipped to your PO Box (note we cannot ship express to PO Boxes).
Motorcycle Product Flat Rate Shipping
We offer free standard shipping on orders of $99 and above. Please note we do not ship outside of the USA. Typically you will receive a tracking number within 2 business days following your order.
Exchanges
Due to the high demand of our products, the fastest way to ensure you can exchange an online order for the product you would like is to please go ahead and purchase that new product immediately from the website. Following that please fill out the returns form and following instructions from our Customer Service team, send the product back for a refund. Please note we do not refund shipping charges and all products must be returned with original packaging in unused condition.
Returns
FOX will accept returns of all product with original packaging in unused condition within 30 days of delivery date. To initiate the return please fill out the returns form below and await contact by email from our Customer Service Team. Please note shipping charges will not be refunded. Return shipping labels are not included.
Please pack and seal your return securely using a tracked and insured carrier service and send to:
| Bicycle + Apparel | Motorcycle |
| FOX Factory 38 Isidor Ct Suite 120, Sparks, NV 89441 |
FOX Factory |
Please write your RA number provided by our service team on the outside of the box for quicker refunds.
897-27-205 Also Fits
| Year | Make | Model | Sub Model | Drive Type | Fuel Type | Doors | Position |
|---|---|---|---|---|---|---|---|
| 2006 | Harley-Davidson | FXDBI Street Bob | All | All | All | All | Rear |
| 2008 | Harley-Davidson | FXDC Super Glide Custom | All | All | All | All | Rear |
| 2001 | Harley-Davidson | FXDX Dyna Super Glide Sport | All | All | All | All | Rear |
| 1994 | Harley-Davidson | FXDL Dyna Low Rider | All | All | All | All | Rear |
