FOX 32 FACTORY TC - GRIP SL
700c Wheel Size
| PART NUMBER | 910-21-268 |
| CHASSIS | Taper-Cast |
| WHEEL SIZE | 700 |
| TRAVEL | 40mm |
| DAMPER | GRIP SL |
| DAMPER CONTROLS | 3Pos-Adj |
| AXLE | Kabolt 12x100 |
| RAKE | 50mm |
| STEERER | 1.5 Tapered |
| UPPER TUBE FINISH | Kashima |
| AIR CHANNELS | N/A |
| BLEEDERS | N/A |
| FLOATING AXLE | N/A |
| ROTOR SIZE | 160 direct Flat Mount, up to 180 compatible |
| MUD GUARD MOUNT | N/A |
| AIR SPRING | FLOAT EVOL |
| STARTING WEIGHT | 1161g (32TC, 700c, F-S, 50, Grip SL, Kabolt) |
| DECAL | Kashima/Grey |
| AXLE TO CROWN | 435.5mm - 40mm travel / 445.5mm - 50mm travel |
| FENDER MOUNT | Included full fender mount hardware |
| MAX TIRE SIZE | 700c x 50mm (Optimized for 700c - not 650b compatible) |
| FORK COLOR | Shiny Black |
| STANCHION | 32 |
| MODEL YEAR | 2025 |
| TUNING GUIDE | https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/605_00_303REVB_2025FOX32TCOwner_sGuide_FINAL.pdf |
| PART NUMBER | 910-21-311 |
| CHASSIS | Taper-Cast |
| WHEEL SIZE | 700 |
| TRAVEL | 40mm |
| DAMPER | GRIP SL |
| DAMPER CONTROLS | 3Pos-Adj |
| AXLE | Kabolt 12x100 |
| RAKE | 45mm |
| STEERER | 1.5 Tapered |
| UPPER TUBE FINISH | Kashima |
| AIR CHANNELS | N/A |
| BLEEDERS | N/A |
| FLOATING AXLE | N/A |
| ROTOR SIZE | 160 direct Flat Mount, up to 180 compatible |
| MUD GUARD MOUNT | N/A |
| AIR SPRING | FLOAT EVOL |
| STARTING WEIGHT | 1161g (32TC, 700c, F-S, 50, Grip SL, Kabolt) |
| DECAL | Black/Clear |
| AXLE TO CROWN | 435.5mm - 40mm travel / 445.5mm - 50mm travel |
| FENDER MOUNT | Included full fender mount hardware |
| MAX TIRE SIZE | 700c x 50mm (Optimized for 700c - not 650b compatible) |
| FORK COLOR | Shiny Orange |
| STANCHION | 32 |
| MODEL YEAR | 2025 |
| TUNING GUIDE | https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/605_00_303REVB_2025FOX32TCOwner_sGuide_FINAL.pdf |
| PART NUMBER | 910-21-312 |
| CHASSIS | Taper-Cast |
| WHEEL SIZE | 700 |
| TRAVEL | 50mm |
| DAMPER | GRIP SL |
| DAMPER CONTROLS | 3Pos-Adj |
| AXLE | Kabolt 12x100 |
| RAKE | 45mm |
| STEERER | 1.5 Tapered |
| UPPER TUBE FINISH | Kashima |
| AIR CHANNELS | N/A |
| BLEEDERS | N/A |
| FLOATING AXLE | N/A |
| ROTOR SIZE | 160 direct Flat Mount, up to 180 compatible |
| MUD GUARD MOUNT | N/A |
| AIR SPRING | FLOAT EVOL |
| STARTING WEIGHT | 1161g (32TC, 700c, F-S, 50, Grip SL, Kabolt) |
| DECAL | Kashima/Grey |
| AXLE TO CROWN | 435.5mm - 40mm travel / 445.5mm - 50mm travel |
| FENDER MOUNT | Included full fender mount hardware |
| MAX TIRE SIZE | 700c x 50mm (Optimized for 700c - not 650b compatible) |
| FORK COLOR | Shiny Black |
| STANCHION | 32 |
| MODEL YEAR | 2025 |
| TUNING GUIDE | https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/605_00_303REVB_2025FOX32TCOwner_sGuide_FINAL.pdf |
| PART NUMBER | 910-21-313 |
| CHASSIS | Taper-Cast |
| WHEEL SIZE | 700 |
| TRAVEL | 40mm |
| DAMPER | GRIP SL |
| DAMPER CONTROLS | 3Pos-Adj |
| AXLE | Kabolt 12x100 |
| RAKE | 45mm |
| STEERER | 1.5 Tapered |
| UPPER TUBE FINISH | Kashima |
| AIR CHANNELS | N/A |
| BLEEDERS | N/A |
| FLOATING AXLE | N/A |
| ROTOR SIZE | 160 direct Flat Mount, up to 180 compatible |
| MUD GUARD MOUNT | N/A |
| AIR SPRING | FLOAT EVOL |
| STARTING WEIGHT | 1161g (32TC, 700c, F-S, 50, Grip SL, Kabolt) |
| DECAL | Kashima/Grey |
| AXLE TO CROWN | 435.5mm - 40mm travel / 445.5mm - 50mm travel |
| FENDER MOUNT | Included full fender mount hardware |
| MAX TIRE SIZE | 700c x 50mm (Optimized for 700c - not 650b compatible) |
| FORK COLOR | Shiny Black |
| STANCHION | 32 |
| MODEL YEAR | 2025 |
| TUNING GUIDE | https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/605_00_303REVB_2025FOX32TCOwner_sGuide_FINAL.pdf |
Flat Rate Shipping
We offer free standard shipping on all orders of $99 and above. We offer standard flat rate shipping for $10 on orders under $100. Please note we do not ship outside of the USA. Please visit our Canadian FOX Shop for shipments to Canada. Typically you will receive a tracking number within 2 business days following your order.
Exchanges
Due to the high demand of our products, the fastest way to ensure you can exchange an online order for the product you would like is to please go ahead and purchase that new product immediately from the website. Following that please fill out the returns form and following instructions from our Customer Service team, send the product back for a refund. Please note we do not refund shipping charges and all products must be returned with original packaging in unused condition.
Returns
Within 30 days of purchase online FOX will accept returns of all returned with original packaging in unused condition. To initiate the return please fill out the returns form below and await contact by email from our Customer Service Team. Please note shipping charges will not be refunded.
| PART NUMBER | 910-21-268 |
| CHASSIS | Taper-Cast |
| WHEEL SIZE | 700 |
| TRAVEL | 40mm |
| DAMPER | GRIP SL |
| DAMPER CONTROLS | 3Pos-Adj |
| AXLE | Kabolt 12x100 |
| RAKE | 50mm |
| STEERER | 1.5 Tapered |
| UPPER TUBE FINISH | Kashima |
| AIR CHANNELS | N/A |
| BLEEDERS | N/A |
| FLOATING AXLE | N/A |
| ROTOR SIZE | 160 direct Flat Mount, up to 180 compatible |
| MUD GUARD MOUNT | N/A |
| AIR SPRING | FLOAT EVOL |
| STARTING WEIGHT | 1161g (32TC, 700c, F-S, 50, Grip SL, Kabolt) |
| DECAL | Kashima/Grey |
| AXLE TO CROWN | 435.5mm - 40mm travel / 445.5mm - 50mm travel |
| FENDER MOUNT | Included full fender mount hardware |
| MAX TIRE SIZE | 700c x 50mm (Optimized for 700c - not 650b compatible) |
| FORK COLOR | Shiny Black |
| STANCHION | 32 |
| MODEL YEAR | 2025 |
| TUNING GUIDE | https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/605_00_303REVB_2025FOX32TCOwner_sGuide_FINAL.pdf |
| PART NUMBER | 910-21-311 |
| CHASSIS | Taper-Cast |
| WHEEL SIZE | 700 |
| TRAVEL | 40mm |
| DAMPER | GRIP SL |
| DAMPER CONTROLS | 3Pos-Adj |
| AXLE | Kabolt 12x100 |
| RAKE | 45mm |
| STEERER | 1.5 Tapered |
| UPPER TUBE FINISH | Kashima |
| AIR CHANNELS | N/A |
| BLEEDERS | N/A |
| FLOATING AXLE | N/A |
| ROTOR SIZE | 160 direct Flat Mount, up to 180 compatible |
| MUD GUARD MOUNT | N/A |
| AIR SPRING | FLOAT EVOL |
| STARTING WEIGHT | 1161g (32TC, 700c, F-S, 50, Grip SL, Kabolt) |
| DECAL | Black/Clear |
| AXLE TO CROWN | 435.5mm - 40mm travel / 445.5mm - 50mm travel |
| FENDER MOUNT | Included full fender mount hardware |
| MAX TIRE SIZE | 700c x 50mm (Optimized for 700c - not 650b compatible) |
| FORK COLOR | Shiny Orange |
| STANCHION | 32 |
| MODEL YEAR | 2025 |
| TUNING GUIDE | https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/605_00_303REVB_2025FOX32TCOwner_sGuide_FINAL.pdf |
| PART NUMBER | 910-21-312 |
| CHASSIS | Taper-Cast |
| WHEEL SIZE | 700 |
| TRAVEL | 50mm |
| DAMPER | GRIP SL |
| DAMPER CONTROLS | 3Pos-Adj |
| AXLE | Kabolt 12x100 |
| RAKE | 45mm |
| STEERER | 1.5 Tapered |
| UPPER TUBE FINISH | Kashima |
| AIR CHANNELS | N/A |
| BLEEDERS | N/A |
| FLOATING AXLE | N/A |
| ROTOR SIZE | 160 direct Flat Mount, up to 180 compatible |
| MUD GUARD MOUNT | N/A |
| AIR SPRING | FLOAT EVOL |
| STARTING WEIGHT | 1161g (32TC, 700c, F-S, 50, Grip SL, Kabolt) |
| DECAL | Kashima/Grey |
| AXLE TO CROWN | 435.5mm - 40mm travel / 445.5mm - 50mm travel |
| FENDER MOUNT | Included full fender mount hardware |
| MAX TIRE SIZE | 700c x 50mm (Optimized for 700c - not 650b compatible) |
| FORK COLOR | Shiny Black |
| STANCHION | 32 |
| MODEL YEAR | 2025 |
| TUNING GUIDE | https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/605_00_303REVB_2025FOX32TCOwner_sGuide_FINAL.pdf |
| PART NUMBER | 910-21-313 |
| CHASSIS | Taper-Cast |
| WHEEL SIZE | 700 |
| TRAVEL | 40mm |
| DAMPER | GRIP SL |
| DAMPER CONTROLS | 3Pos-Adj |
| AXLE | Kabolt 12x100 |
| RAKE | 45mm |
| STEERER | 1.5 Tapered |
| UPPER TUBE FINISH | Kashima |
| AIR CHANNELS | N/A |
| BLEEDERS | N/A |
| FLOATING AXLE | N/A |
| ROTOR SIZE | 160 direct Flat Mount, up to 180 compatible |
| MUD GUARD MOUNT | N/A |
| AIR SPRING | FLOAT EVOL |
| STARTING WEIGHT | 1161g (32TC, 700c, F-S, 50, Grip SL, Kabolt) |
| DECAL | Kashima/Grey |
| AXLE TO CROWN | 435.5mm - 40mm travel / 445.5mm - 50mm travel |
| FENDER MOUNT | Included full fender mount hardware |
| MAX TIRE SIZE | 700c x 50mm (Optimized for 700c - not 650b compatible) |
| FORK COLOR | Shiny Black |
| STANCHION | 32 |
| MODEL YEAR | 2025 |
| TUNING GUIDE | https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/605_00_303REVB_2025FOX32TCOwner_sGuide_FINAL.pdf |
Flat Rate Shipping
We offer free standard shipping on all orders of $99 and above. We offer standard flat rate shipping for $10 on orders under $100. Please note we do not ship outside of the USA. Please visit our Canadian FOX Shop for shipments to Canada. Typically you will receive a tracking number within 2 business days following your order.
Exchanges
Due to the high demand of our products, the fastest way to ensure you can exchange an online order for the product you would like is to please go ahead and purchase that new product immediately from the website. Following that please fill out the returns form and following instructions from our Customer Service team, send the product back for a refund. Please note we do not refund shipping charges and all products must be returned with original packaging in unused condition.
Returns
Within 30 days of purchase online FOX will accept returns of all returned with original packaging in unused condition. To initiate the return please fill out the returns form below and await contact by email from our Customer Service Team. Please note shipping charges will not be refunded.
Gravel
Tuned
-
GRIP SL
-
PURPOSE BUILT FOR GRAVEL
-

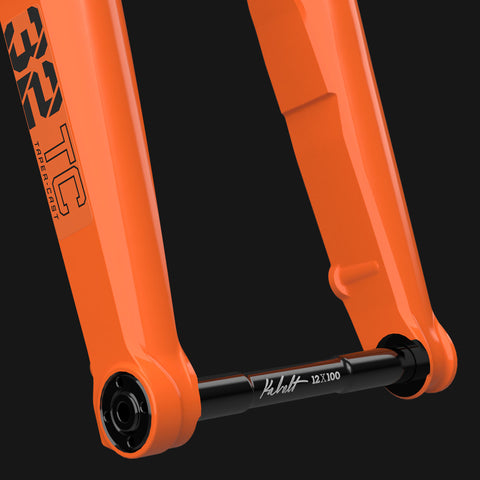

KABOLT THRU-AXLE
