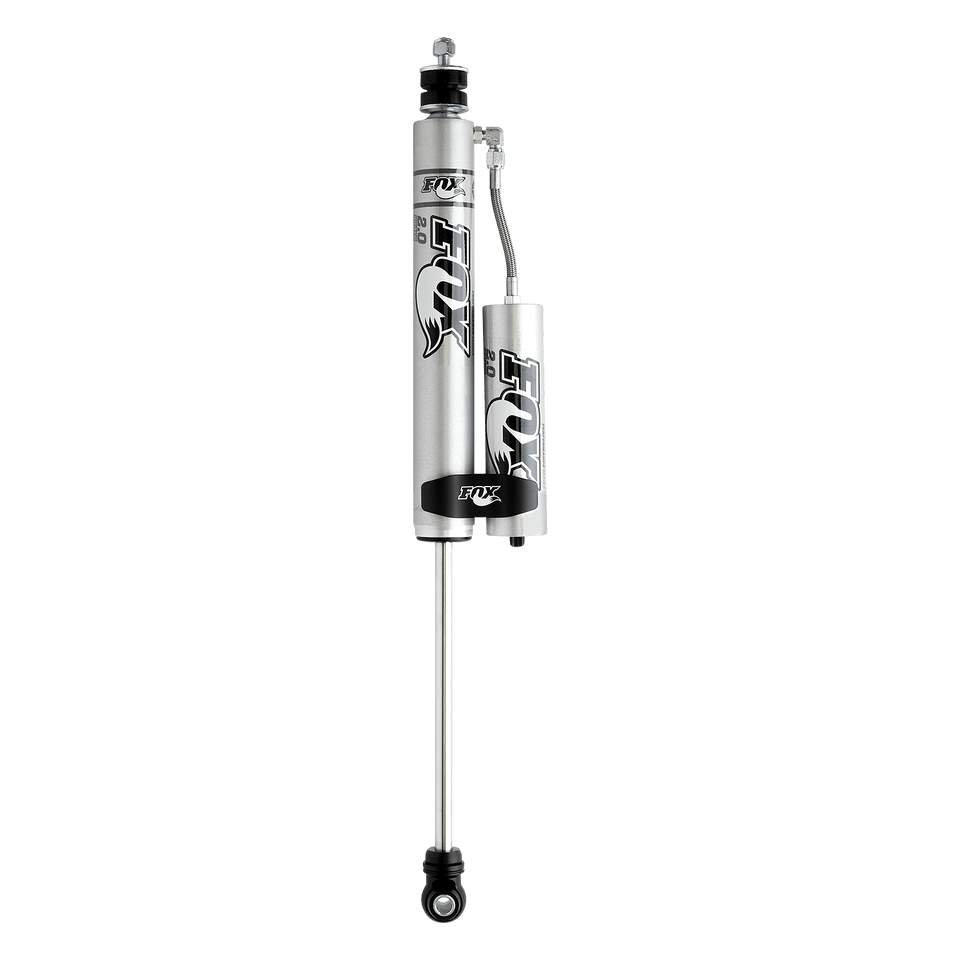

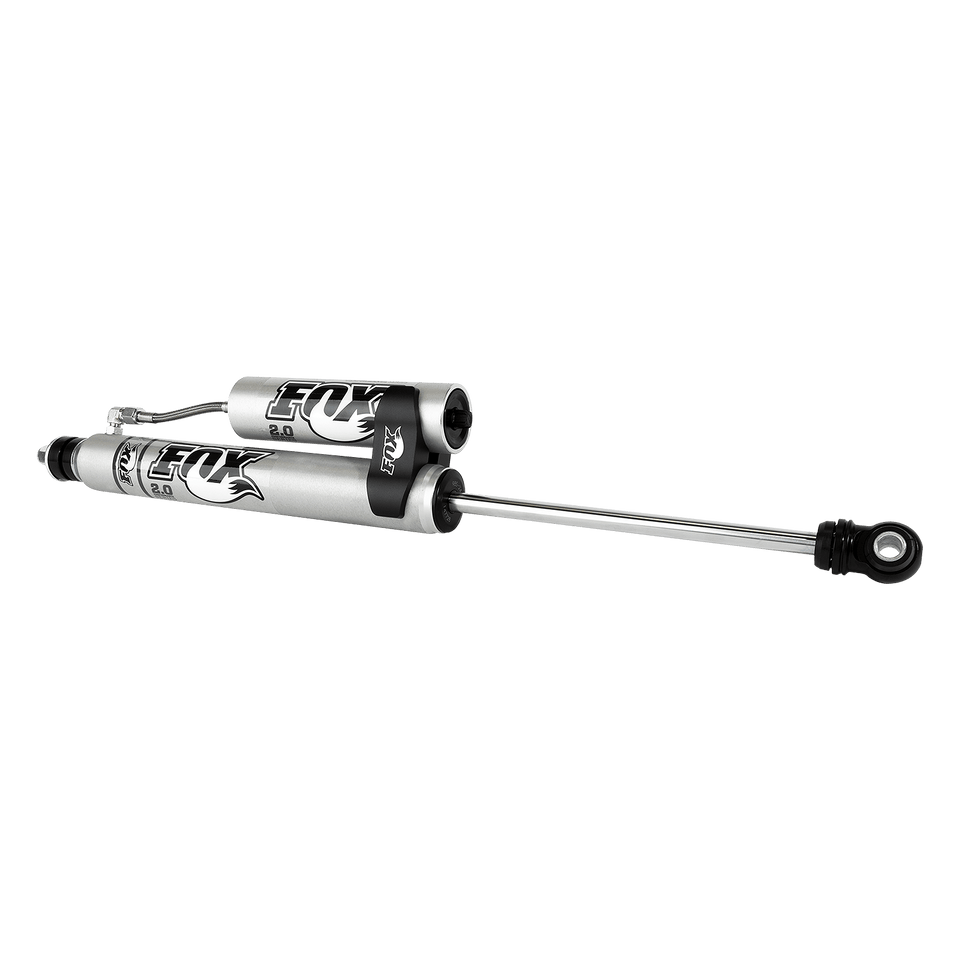

FORD SUPER DUTY | 2.0 PERFORMANCE SERIES
SKU: 985-24-101
The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.
Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
| PART NUMBER | 985-24-101 |
| FEATURES | Includes Aluminum Reservoir Clamp; Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; External Reservoir System Dissipates Heat Fast; Black Anodized CNC Machined Aluminum Components |
| SERIES | Performance |
| TRAVEL | 11.12 |
| FRONT LIFT HEIGHT | 5.5-7 |
| BODY | 2.0" Impact extruded 6061-T6 aluminum will resist rust over time |
| BODY PLATING | Clear-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 5/8" hard chrome plated heat-treated alloy steel |
| PISTON | Race-developed high-flow piston design |
| VALVING | Application specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| EXTENDED LENGTH | 27.37 |
| COMPRESSED LENGTH | 16.25 |
| TOP MOUNT | Stem Top |
| BOTTOM MOUNT | Eyelet |

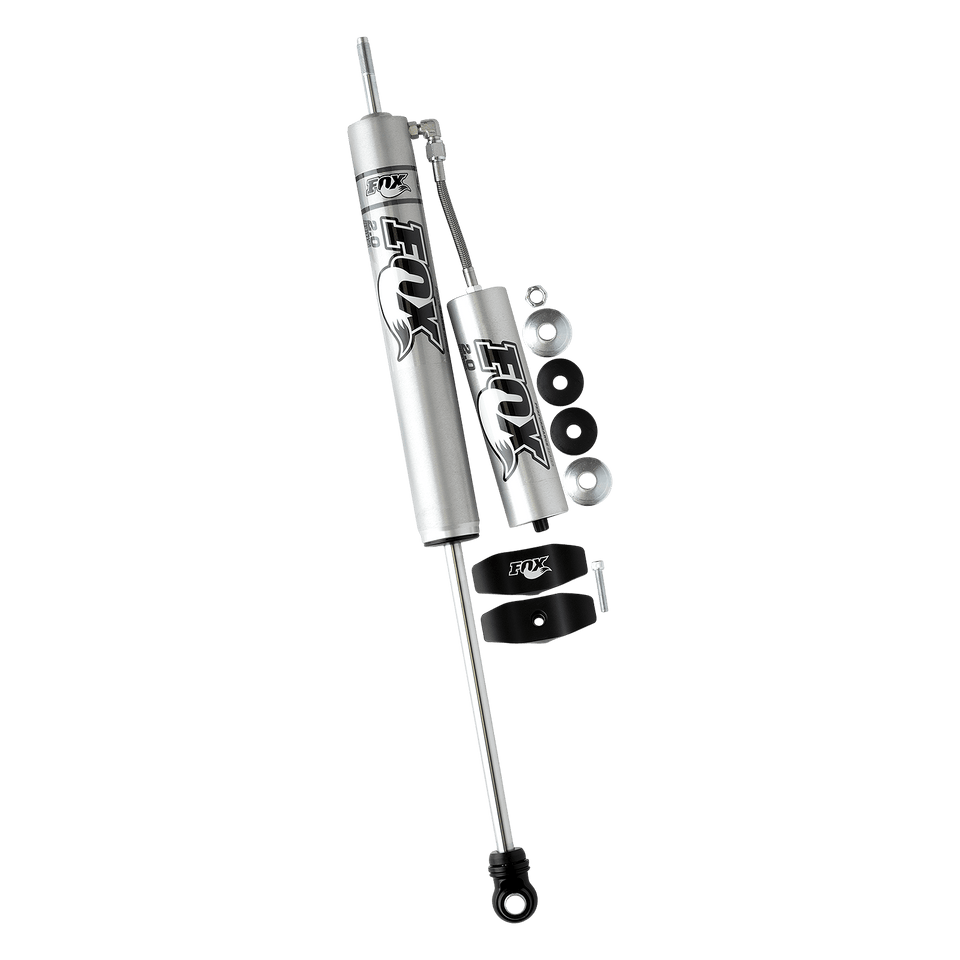

| FITMENT NOTES | Includes Billet Reservoir Clamp |
| PART NUMBER | 985-24-101 |
| FEATURES | Includes Aluminum Reservoir Clamp; Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; External Reservoir System Dissipates Heat Fast; Black Anodized CNC Machined Aluminum Components |
| SERIES | Performance |
| TRAVEL | 11.12 |
| FRONT LIFT HEIGHT | 5.5-7 |
| BODY | 2.0" Impact extruded 6061-T6 aluminum will resist rust over time |
| BODY PLATING | Clear-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 5/8" hard chrome plated heat-treated alloy steel |
| PISTON | Race-developed high-flow piston design |
| VALVING | Application specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| EXTENDED LENGTH | 27.37 |
| COMPRESSED LENGTH | 16.25 |
| TOP MOUNT | Stem Top |
| BOTTOM MOUNT | Eyelet |
| FITMENT NOTES | Includes Billet Reservoir Clamp |
985-24-101 Also Fits
| Year | Make | Model | Drive Type | Position | Lift Height | Comments | Price |
|---|---|---|---|---|---|---|---|
| 2005 | Ford | F-250 Super Duty | 4WD | Front | 5.5-7 | Includes Billet Reservoir Clamp | $356.95 |
| 2006 | Ford | F-250 Super Duty | 4WD | Front | 5.5-7 | Includes Billet Reservoir Clamp | $356.95 |
| 2007 | Ford | F-250 Super Duty | 4WD | Front | 5.5-7 | Includes Billet Reservoir Clamp | $356.95 |
| 2008 | Ford | F-250 Super Duty | 4WD | Front | 5.5-7 | Includes Billet Reservoir Clamp | $356.95 |
MANUALS & DOCUMENTS
-
01
OWNER'S MANUAL
Download ManualFull overview manual including tuning, installation, and general owner's manual.
-
03
SERVICE
Get ServiceKeep your suspension performing at factory levels. Get service or upgrade your suspension.
