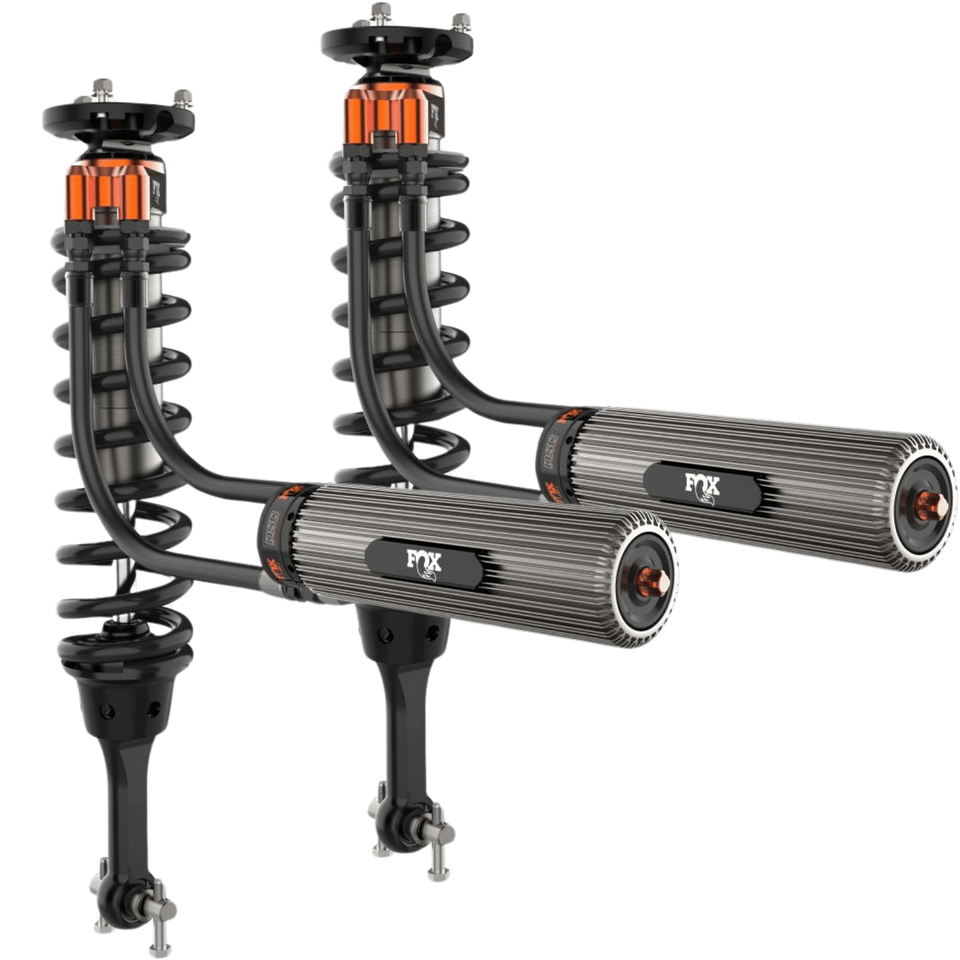

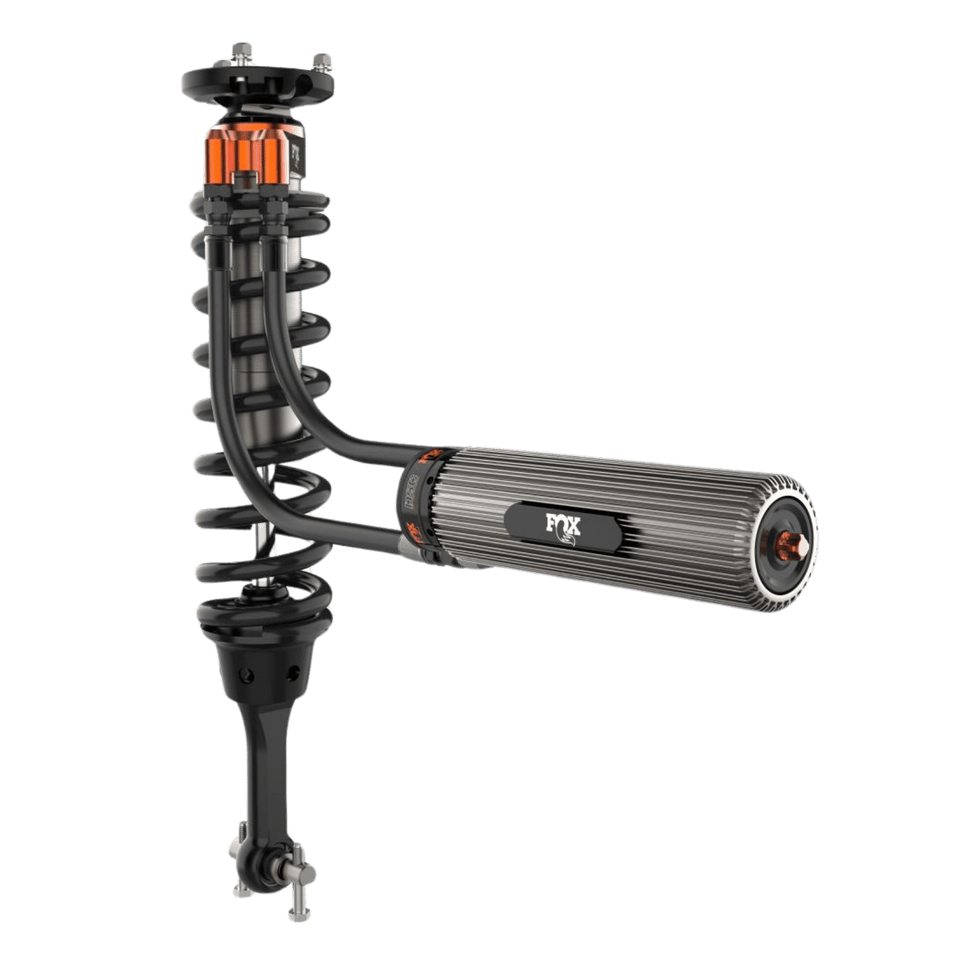

FORD F-150 | 3.0 FACTORY RACE SERIES

SKU: 883-06-191

$3,879.95

FORD F-150 | 3.0 FACTORY RACE SERIES

Low Stock

Find a Retailer

View Cart Check Out
FOX Factory Race Series 3.0 Internal Bypass shocks for the 14th generation Ford F-150 deliver position-sensitive damping technology, dual speed compression (DSC) adjustment, and high-speed read performance in a bolt-on kit.

CHECK FITMENT: ENTER YOUR VEHICLE

PART NUMBER 883-06-191
FEATURES 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body
Patented, internal bypass design
Application-specific springs
7/8" stainless steel shafts
Vehicle-specific tuning maximizes performance
Redundant sealing pack system: main seal, wiper seal, scraper seal
Recirculating Reservoir bridge keep shock temperatures cool

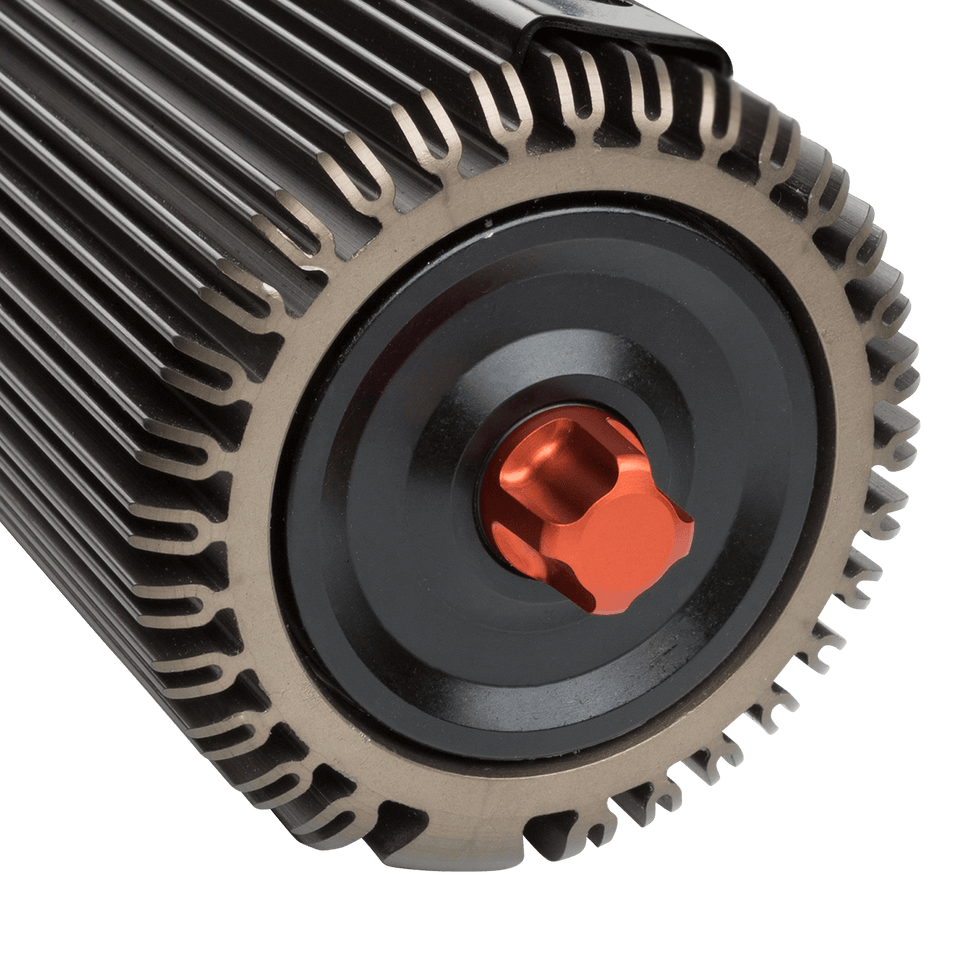

Finned reservoir, with DSC adjuster
Rear shaft guards protect against roost
SERIES Factory Race
TRAVEL 5.24
FRONT LIFT HEIGHT 2.5
EXTENDED LENGTH 22.49
COMPRESSED LENGTH 17.25
TOP MOUNT OEM
BOTTOM MOUNT Bar Pin
FITMENT NOTES Does not fit Single Cab Models

883-06-191 Also Fits

Year Make Model Drive Type Position Lift Height Comments Price
2021 Ford F-150 4WD Front 2.5 1" lift on Tremor, Excludes Single Cab Trucks $3,879.95
2022 Ford F-150 4WD Front 2.5 1" lift on Tremor, Excludes Single Cab Trucks $3,879.95
2023 Ford F-150 4WD Front 2.5 1" lift on Tremor, Excludes Single Cab Trucks $3,879.95
2024 Ford F-150 4WD Front 2.5 1" lift on Tremor, Excludes Single Cab Trucks $3,879.95
2025 Ford F-150 4WD Front 2.5 1" lift on Tremor, Excludes Single Cab Trucks $3,879.95
