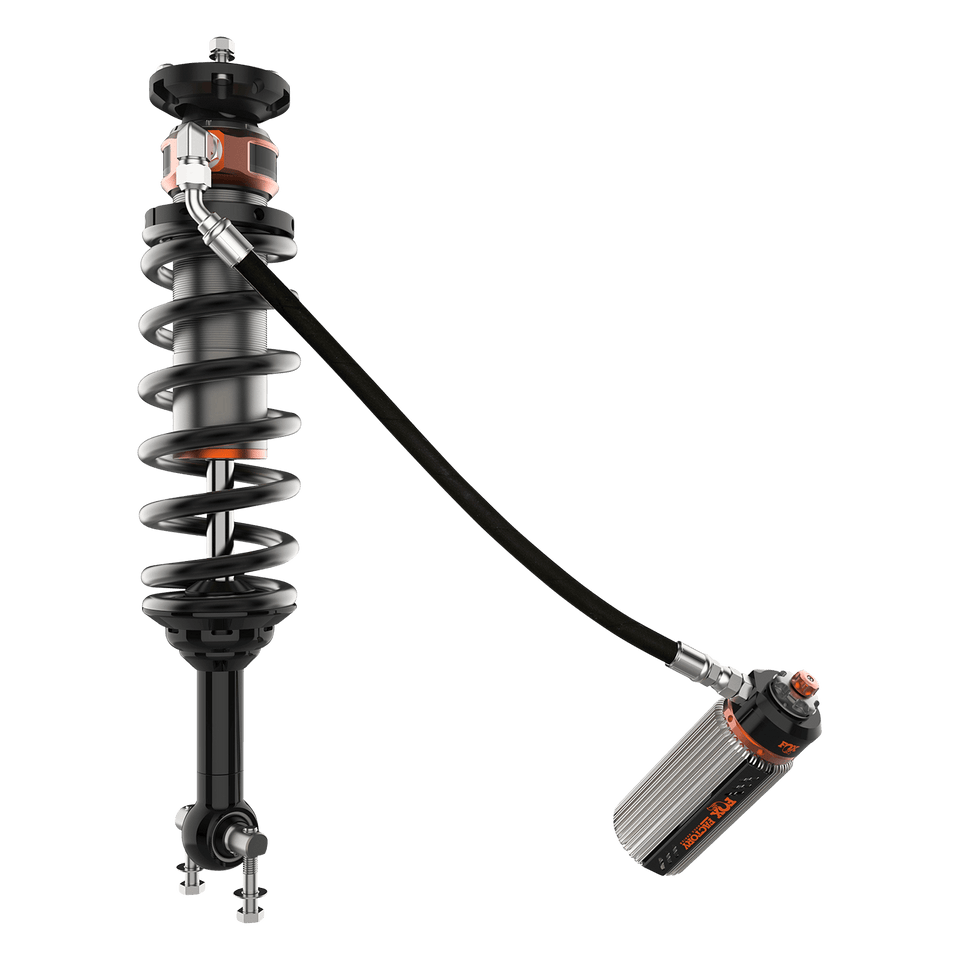

FORD BRONCO | 3.0 FACTORY RACE SERIES
SKU: 883-06-204
FOX Factory Race Series 3.0 Internal Bypass shocks for the Ford Bronco deliver position-sensitive damping technology
| PART NUMBER | 883-06-204 |
| FEATURES |
3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body Patented, internal bypass design Application-specific springs 7/8" stainless steel shafts Vehicle-specific tuning maximizes performance Redundant sealing pack system: main seal, wiper seal, scraper seal Finned reservoir, with DSC adjuster |
| SERIES | Factory Race |
| TRAVEL | 5.42 |
| FRONT LIFT HEIGHT | 3-4.5 |
| EXTENDED LENGTH | 23.44 |
| COMPRESSED LENGTH | 17.95 |
| TOP MOUNT | OEM |
| BOTTOM MOUNT | Bar Pin |
| FITMENT NOTES | Requires Upper Control Arm | Excludes Raptor submodel | Maximum 4.5" back spacing required to properly clearance suspension components |
| PART NUMBER | 883-06-204 |
| FEATURES |
3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body Patented, internal bypass design Application-specific springs 7/8" stainless steel shafts Vehicle-specific tuning maximizes performance Redundant sealing pack system: main seal, wiper seal, scraper seal Finned reservoir, with DSC adjuster |
| SERIES | Factory Race |
| TRAVEL | 5.42 |
| FRONT LIFT HEIGHT | 3-4.5 |
| EXTENDED LENGTH | 23.44 |
| COMPRESSED LENGTH | 17.95 |
| TOP MOUNT | OEM |
| BOTTOM MOUNT | Bar Pin |
| FITMENT NOTES | Requires Upper Control Arm | Excludes Raptor submodel | Maximum 4.5" back spacing required to properly clearance suspension components |
883-06-204 Also Fits
| Year | Make | Model | Drive Type | Position | Lift Height | Comments | Price |
|---|---|---|---|---|---|---|---|
| 2021 | Ford | Bronco | All | Front | 3-4.5 | Requires Upper Control Arm, Excludes Raptor submodel | $3,879.95 |
| 2022 | Ford | Bronco | All | Front | 3-4.5 | Requires Upper Control Arm, Excludes Raptor submodel | $3,879.95 |
| 2023 | Ford | Bronco | All | Front | 3-4.5 | Requires Upper Control Arm, Excludes Raptor submodel | $3,879.95 |
| 2024 | Ford | Bronco | All | Front | 3-4.5 | Requires Upper Control Arm, Excludes Raptor submodel | $3,879.95 |
MANUALS & DOCUMENTS
-
01
OWNER'S MANUAL
Download ManualFull overview manual including tuning, installation, and general owner's manual.
-
03
SERVICE
Get ServiceKeep your suspension performing at factory levels. Get service or upgrade your suspension.
