CHEVROLET SILVERADO 1500 & GMC SIERRA 1500 | 2.5 PERFORMANCE SERIES

SKU: 987-02-004

$789.95

CHEVROLET SILVERADO 1500 & GMC SIERRA 1500 | 2.5 PERFORMANCE SERIES

Low Stock

Find a Retailer

View Cart Check Out
LIMITED LIFETIME WARRANTY

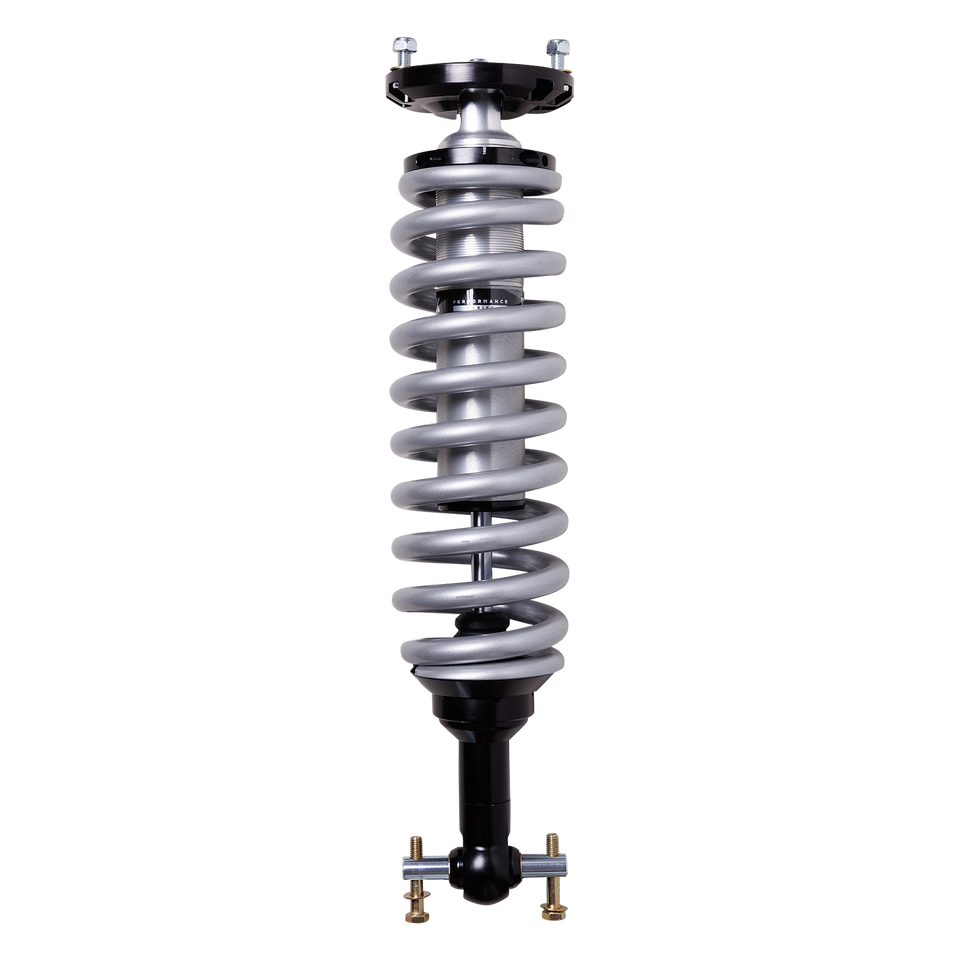

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.5 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

CHECK FITMENT: ENTER YOUR VEHICLE

PART NUMBER 987-02-004
SERIES Performance
TRAVEL 5.49
BODY 2.5” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
BODY PLATING Clear-anodized for a durable finish
COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT 5/8" hard chrome plated heat-treated alloy steel
PISTON Race-developed high-flow piston design
EXTENDED LENGTH 23.53
COMPRESSED LENGTH 18.04
TOP MOUNT OEM
BOTTOM MOUNT Eyelet

987-02-004 Also Fits

Year Make Model Sub Model Drive Type Fuel Type Doors Fitment Map Details Position Lift Height
2022 Chevrolet Silverado 1500 LTD SSV All All All Requires Upper Control Arm Front 2.5"-3.5"
2023 GMC Sierra 1500 Elevation All All All Requires Upper Control Arm Front 2.5"-3.5"
2023 Chevrolet Silverado 1500 Custom All All All Requires Upper Control Arm Front 2.5"-3.5"
2019 GMC Sierra 1500 Base All All All Requires Upper Control Arm Front 2.5"-3.5"
2020 Chevrolet Silverado 1500 LT All All All Requires Upper Control Arm Front 2.5"-3.5"
2024 Chevrolet Silverado 1500 WT All All All Requires Upper Control Arm Front 2.5"-3.5"
2025 GMC Sierra 1500 SLT All All All Requires Upper Control Arm Front 2.5"-3.5"
2020 GMC Sierra 1500 Base All All All Requires Upper Control Arm Front 2.5"-3.5"
2024 Chevrolet Silverado 1500 Custom All All All Requires Upper Control Arm Front 2.5"-3.5"
2021 Chevrolet Silverado 1500 Custom All All All Requires Upper Control Arm Front 2.5"-3.5"
2019 Chevrolet Silverado 1500 WT All All All Requires Upper Control Arm Front 2.5"-3.5"
2026 Chevrolet Silverado 1500 LT All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 Chevrolet Silverado 1500 LTD WT All All All Requires Upper Control Arm Front 2.5"-3.5"
2020 GMC Sierra 1500 Denali All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 Chevrolet Silverado 1500 LTD LTZ All All All Requires Upper Control Arm Front 2.5"-3.5"
2019 Chevrolet Silverado 1500 Custom All All All Requires Upper Control Arm Front 2.5"-3.5"
2025 Chevrolet Silverado 1500 High Country All All All Requires Upper Control Arm Front 2.5"-3.5"
2026 GMC Sierra 1500 Denali All All All Requires Upper Control Arm Front 2.5"-3.5"
2019 GMC Sierra 1500 SLT All All All Requires Upper Control Arm Front 2.5"-3.5"
2024 Chevrolet Silverado 1500 RST All All All Requires Upper Control Arm Front 2.5"-3.5"
2021 GMC Sierra 1500 Denali All All All Requires Upper Control Arm Front 2.5"-3.5"
2026 GMC Sierra 1500 Pro All All All Requires Upper Control Arm Front 2.5"-3.5"
2021 Chevrolet Silverado 1500 LT All All All Requires Upper Control Arm Front 2.5"-3.5"
2025 Chevrolet Silverado 1500 Custom All All All Requires Upper Control Arm Front 2.5"-3.5"
2023 GMC Sierra 1500 Pro All All All Requires Upper Control Arm Front 2.5"-3.5"
2019 Chevrolet Silverado 1500 High Country All All All Requires Upper Control Arm Front 2.5"-3.5"
2026 GMC Sierra 1500 SLT All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 Chevrolet Silverado 1500 LTD High Country All All All Requires Upper Control Arm Front 2.5"-3.5"
2023 GMC Sierra 1500 SLT All All All Requires Upper Control Arm Front 2.5"-3.5"
2021 Chevrolet Silverado 1500 High Country All All All Requires Upper Control Arm Front 2.5"-3.5"
2023 Chevrolet Silverado 1500 High Country All All All Requires Upper Control Arm Front 2.5"-3.5"
2020 Chevrolet Silverado 1500 LTZ All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 Chevrolet Silverado 1500 RST All All All Requires Upper Control Arm Front 2.5"-3.5"
2020 Chevrolet Silverado 1500 SSV All All All Requires Upper Control Arm Front 2.5"-3.5"
2019 GMC Sierra 1500 SLE All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 Chevrolet Silverado 1500 LTD RST All All All Requires Upper Control Arm Front 2.5"-3.5"
2024 Chevrolet Silverado 1500 High Country All All All Requires Upper Control Arm Front 2.5"-3.5"
2025 Chevrolet Silverado 1500 WT All All All Requires Upper Control Arm Front 2.5"-3.5"
2020 GMC Sierra 1500 Elevation All All All Requires Upper Control Arm Front 2.5"-3.5"
2019 GMC Sierra 1500 Elevation All All All Requires Upper Control Arm Front 2.5"-3.5"
2020 Chevrolet Silverado 1500 RST All All All Requires Upper Control Arm Front 2.5"-3.5"
2019 Chevrolet Silverado 1500 WT Cab Regular All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 GMC Sierra 1500 SLT All All All Requires Upper Control Arm Front 2.5"-3.5"
2026 Chevrolet Silverado 1500 Custom All All All Requires Upper Control Arm Front 2.5"-3.5"
2020 Chevrolet Silverado 1500 Custom All All All Requires Upper Control Arm Front 2.5"-3.5"
2020 GMC Sierra 1500 SLT All All All Requires Upper Control Arm Front 2.5"-3.5"
2024 Chevrolet Silverado 1500 LT All All All Requires Upper Control Arm Front 2.5"-3.5"
2026 GMC Sierra 1500 SLE All All All Requires Upper Control Arm Front 2.5"-3.5"
2024 Chevrolet Silverado 1500 PPV All All All Requires Upper Control Arm Front 2.5"-3.5"
2021 Chevrolet Silverado 1500 SSV All All All Requires Upper Control Arm Front 2.5"-3.5"
2020 Chevrolet Silverado 1500 WT All All All Requires Upper Control Arm Front 2.5"-3.5"
2019 Chevrolet Silverado 1500 LTZ All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 GMC Sierra 1500 Limited Elevation All All All Requires Upper Control Arm Front 2.5"-3.5"
2025 Chevrolet Silverado 1500 LTZ All All All Requires Upper Control Arm Front 2.5"-3.5"
2021 GMC Sierra 1500 Elevation All All All Requires Upper Control Arm Front 2.5"-3.5"
2024 Chevrolet Silverado 1500 LTZ All All All Requires Upper Control Arm Front 2.5"-3.5"
2021 Chevrolet Silverado 1500 WT All All All Requires Upper Control Arm Front 2.5"-3.5"
2026 Chevrolet Silverado 1500 High Country All All All Requires Upper Control Arm Front 2.5"-3.5"
2025 GMC Sierra 1500 Denali All All All Requires Upper Control Arm Front 2.5"-3.5"
2021 GMC Sierra 1500 SLT All All All Requires Upper Control Arm Front 2.5"-3.5"
2020 Chevrolet Silverado 1500 WT Cab Regular All All All Requires Upper Control Arm Front 2.5"-3.5"
2023 GMC Sierra 1500 Denali Ultimate All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 GMC Sierra 1500 Denali All All All Requires Upper Control Arm Front 2.5"-3.5"
2023 Chevrolet Silverado 1500 PPV All All All Requires Upper Control Arm Front 2.5"-3.5"
2024 GMC Sierra 1500 SLT All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 GMC Sierra 1500 Limited SLE All All All Requires Upper Control Arm Front 2.5"-3.5"
2025 Chevrolet Silverado 1500 LT All All All Requires Upper Control Arm Front 2.5"-3.5"
2023 GMC Sierra 1500 Denali All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 Chevrolet Silverado 1500 LTD LT All All All Requires Upper Control Arm Front 2.5"-3.5"
2026 Chevrolet Silverado 1500 PPV All All All Requires Upper Control Arm Front 2.5"-3.5"
2025 GMC Sierra 1500 Elevation All All All Requires Upper Control Arm Front 2.5"-3.5"
2025 GMC Sierra 1500 Denali Ultimate All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 GMC Sierra 1500 Pro All All All Requires Upper Control Arm Front 2.5"-3.5"
2026 GMC Sierra 1500 Denali Ultimate All All All Requires Upper Control Arm Front 2.5"-3.5"
2024 GMC Sierra 1500 Denali All All All Requires Upper Control Arm Front 2.5"-3.5"
2026 Chevrolet Silverado 1500 WT All All All Requires Upper Control Arm Front 2.5"-3.5"
2021 Chevrolet Silverado 1500 RST All All All Requires Upper Control Arm Front 2.5"-3.5"
2019 GMC Sierra 1500 Denali All All All Requires Upper Control Arm Front 2.5"-3.5"
2026 Chevrolet Silverado 1500 LTZ All All All Requires Upper Control Arm Front 2.5"-3.5"
2019 Chevrolet Silverado 1500 SSV All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 GMC Sierra 1500 Elevation All All All Requires Upper Control Arm Front 2.5"-3.5"
2023 GMC Sierra 1500 SLE All All All Requires Upper Control Arm Front 2.5"-3.5"
2025 Chevrolet Silverado 1500 PPV All All All Requires Upper Control Arm Front 2.5"-3.5"
2024 GMC Sierra 1500 Denali Ultimate All All All Requires Upper Control Arm Front 2.5"-3.5"
2020 Chevrolet Silverado 1500 WT Doble Cabina All All All Requires Upper Control Arm Front 2.5"-3.5"
2020 GMC Sierra 1500 SLE All All All Requires Upper Control Arm Front 2.5"-3.5"
2019 Chevrolet Silverado 1500 RST All All All Requires Upper Control Arm Front 2.5"-3.5"
2025 GMC Sierra 1500 SLE All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 Chevrolet Silverado 1500 LTZ All All All Requires Upper Control Arm Front 2.5"-3.5"
2026 GMC Sierra 1500 Elevation All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 GMC Sierra 1500 Limited Pro All All All Requires Upper Control Arm Front 2.5"-3.5"
2021 GMC Sierra 1500 SLE All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 Chevrolet Silverado 1500 High Country All All All Requires Upper Control Arm Front 2.5"-3.5"
2024 GMC Sierra 1500 Pro All All All Requires Upper Control Arm Front 2.5"-3.5"
2021 GMC Sierra 1500 Base All All All Requires Upper Control Arm Front 2.5"-3.5"
2025 Chevrolet Silverado 1500 RST All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 GMC Sierra 1500 SLE All All All Requires Upper Control Arm Front 2.5"-3.5"
2024 GMC Sierra 1500 SLE All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 GMC Sierra 1500 Limited SLT All All All Requires Upper Control Arm Front 2.5"-3.5"
2025 GMC Sierra 1500 Pro All All All Requires Upper Control Arm Front 2.5"-3.5"
2021 Chevrolet Silverado 1500 LTZ All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 Chevrolet Silverado 1500 Custom All All All Requires Upper Control Arm Front 2.5"-3.5"
2026 Chevrolet Silverado 1500 RST All All All Requires Upper Control Arm Front 2.5"-3.5"
2023 Chevrolet Silverado 1500 LT All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 Chevrolet Silverado 1500 LTD Custom All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 Chevrolet Silverado 1500 LT All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 GMC Sierra 1500 Denali Ultimate All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 Chevrolet Silverado 1500 WT All All All Requires Upper Control Arm Front 2.5"-3.5"
2022 GMC Sierra 1500 Limited Denali All All All Requires Upper Control Arm Front 2.5"-3.5"
2023 Chevrolet Silverado 1500 LTZ All All All Requires Upper Control Arm Front 2.5"-3.5"
2024 GMC Sierra 1500 Elevation All All All Requires Upper Control Arm Front 2.5"-3.5"
2023 Chevrolet Silverado 1500 RST All All All Requires Upper Control Arm Front 2.5"-3.5"
2019 Chevrolet Silverado 1500 WT Doble Cabina All All All Requires Upper Control Arm Front 2.5"-3.5"
2023 Chevrolet Silverado 1500 WT All All All Requires Upper Control Arm Front 2.5"-3.5"
2019 Chevrolet Silverado 1500 LT All All All Requires Upper Control Arm Front 2.5"-3.5"
2020 Chevrolet Silverado 1500 High Country All All All Requires Upper Control Arm Front 2.5"-3.5"
